Where the Drain Pump Fits in This LG Washer

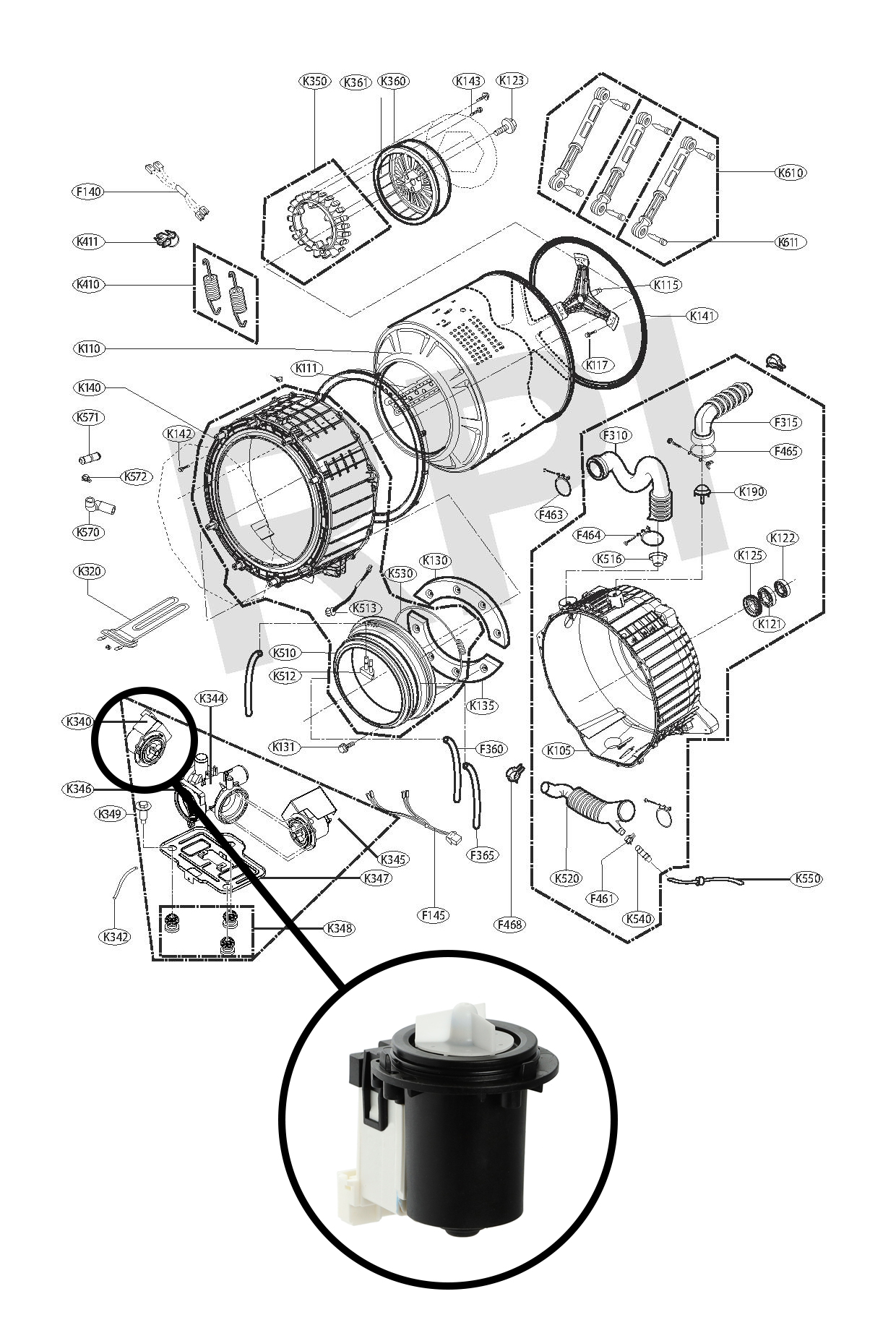

The highlighted LG WM4270HVA diagram shows the drain pump within the lower pump assembly. The enlarged component view connects the drawing to the part discussed in this repair story.
At a home in Carmel, Indiana, the customer reported that water stayed in the washer when the drain cycle began, accompanied by a new, unusual noise. The repair carried out was drain pump replacement. The photographs below follow that work from access to reassembly.
Identifying Model WM4270HVA
The original appliance sticker identifies this front-load washing machine as LG WM4270HVA. This close crop retains the photographed model line without displaying the serial number.
The full model matters when arranging service: similar-looking LG washers can have different components and layouts. Sharing the model and the exact point in the cycle when a noise occurs helps describe the problem clearly.
The Customer Call: Noise, but No Drainage
The customer contacted Alex Appliance Repair because the washer was not moving water out during the drain cycle. They also noticed an unusual noise at that stage. The complaint was about draining, rather than a sound reported only during high-speed spin.
A noise alone does not establish which component needs replacement. In this case, the service involved replacing the drain pump. The account here describes this particular Carmel visit, not a diagnosis for every LG washer with similar symptoms.
Accessing the Pump Behind the Front Panel

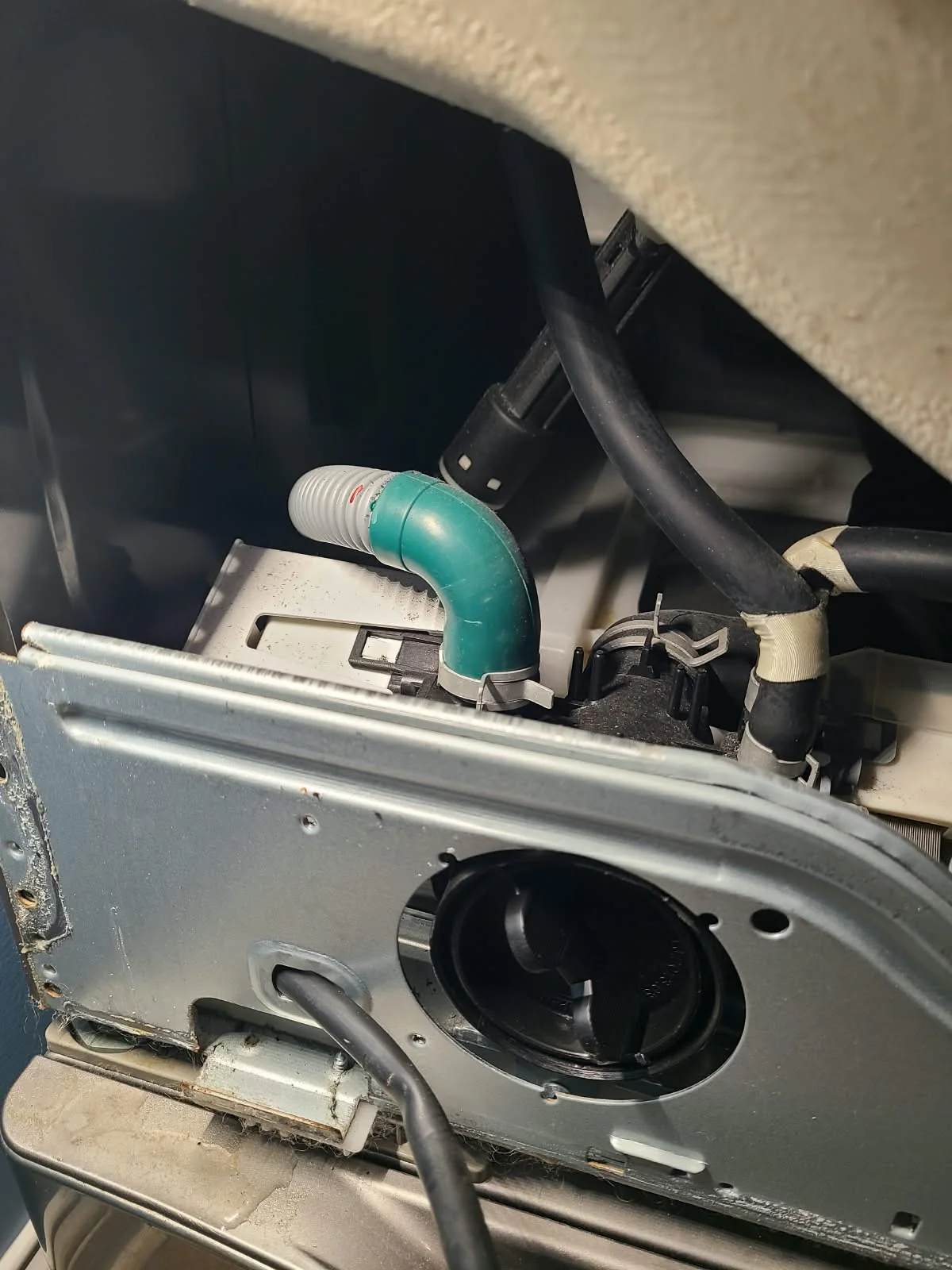

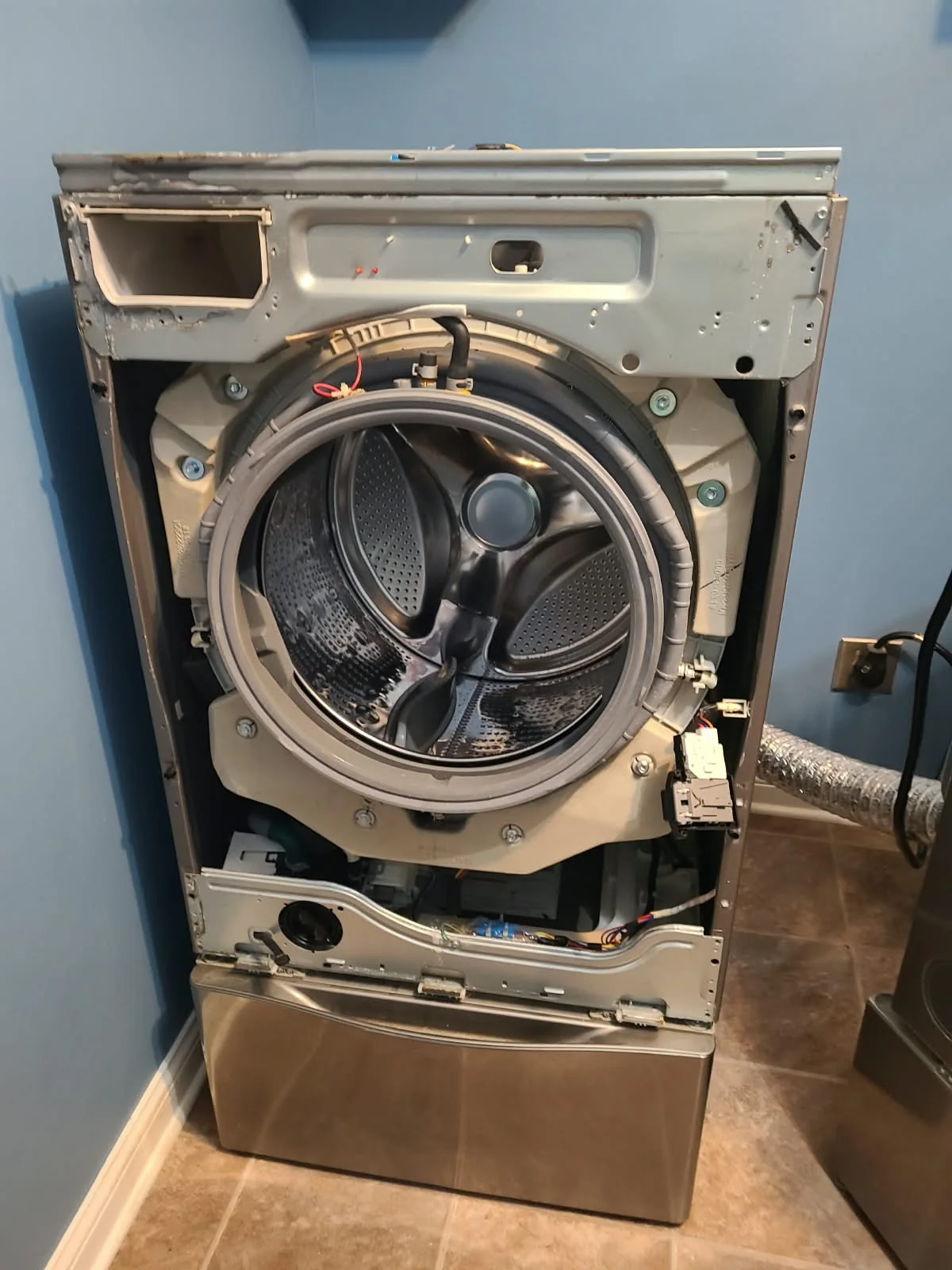

With the front panel removed, the lower pump area became accessible beneath the tub. The photograph shows the washer during disassembly, with the door boot and drum visible above the service area.
The pump sits low in the cabinet, near the filter opening. Access to that assembly is different from opening the small filter service cover. These are repair photographs, not instructions to operate a washer with its panels removed.
The Pump Housing and Connections

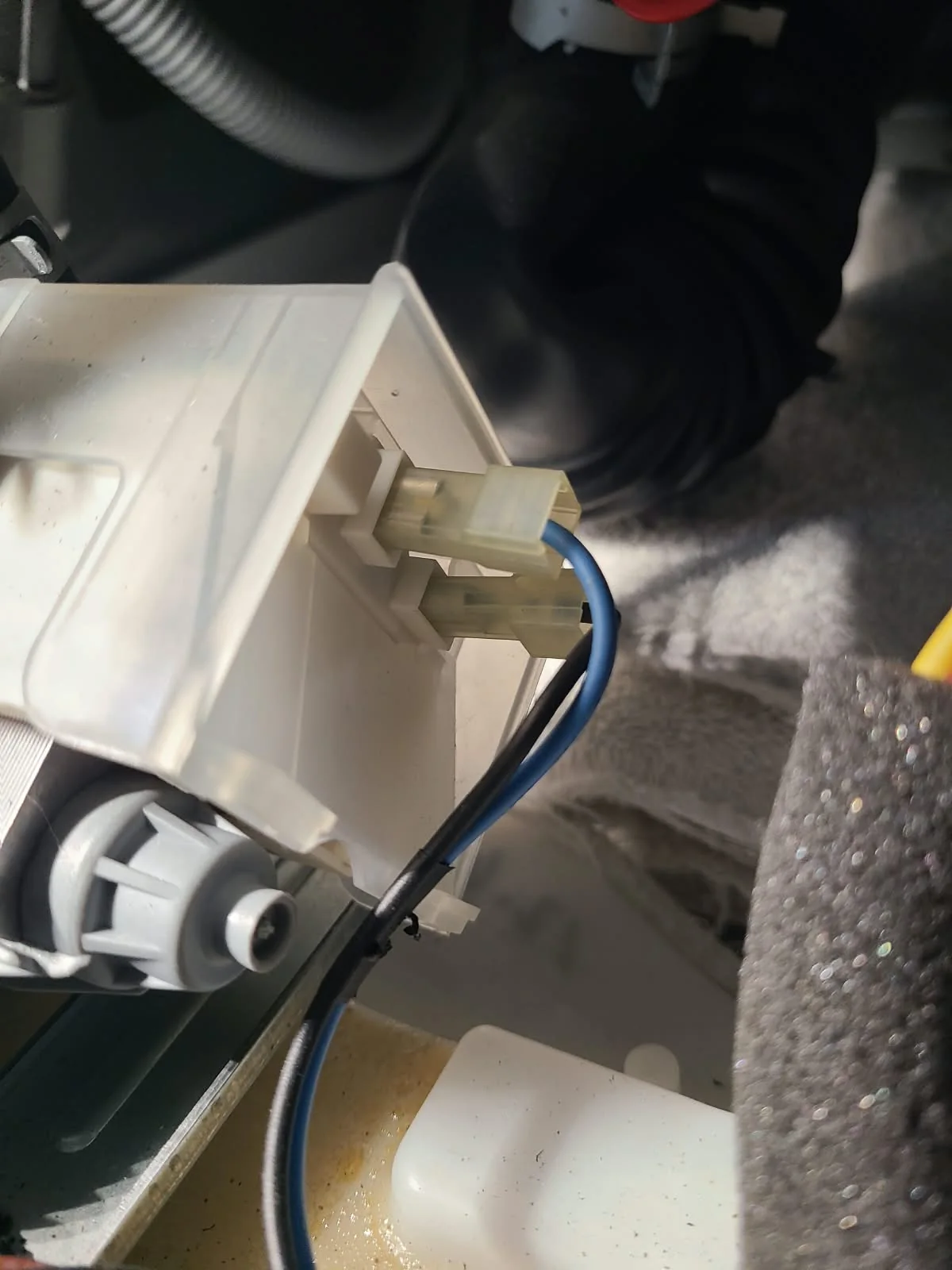

The close-up photographs show the pump housing, attached hoses and an electrical connection during service. These views document the area involved in the replacement and help distinguish the drain system from the drum drive.
A complete drainage assessment considers the water path as well as the pump. A restriction and a pump problem can produce similar complaints, so the symptom should not be treated as a parts order by itself.
Drain Pump Replacement

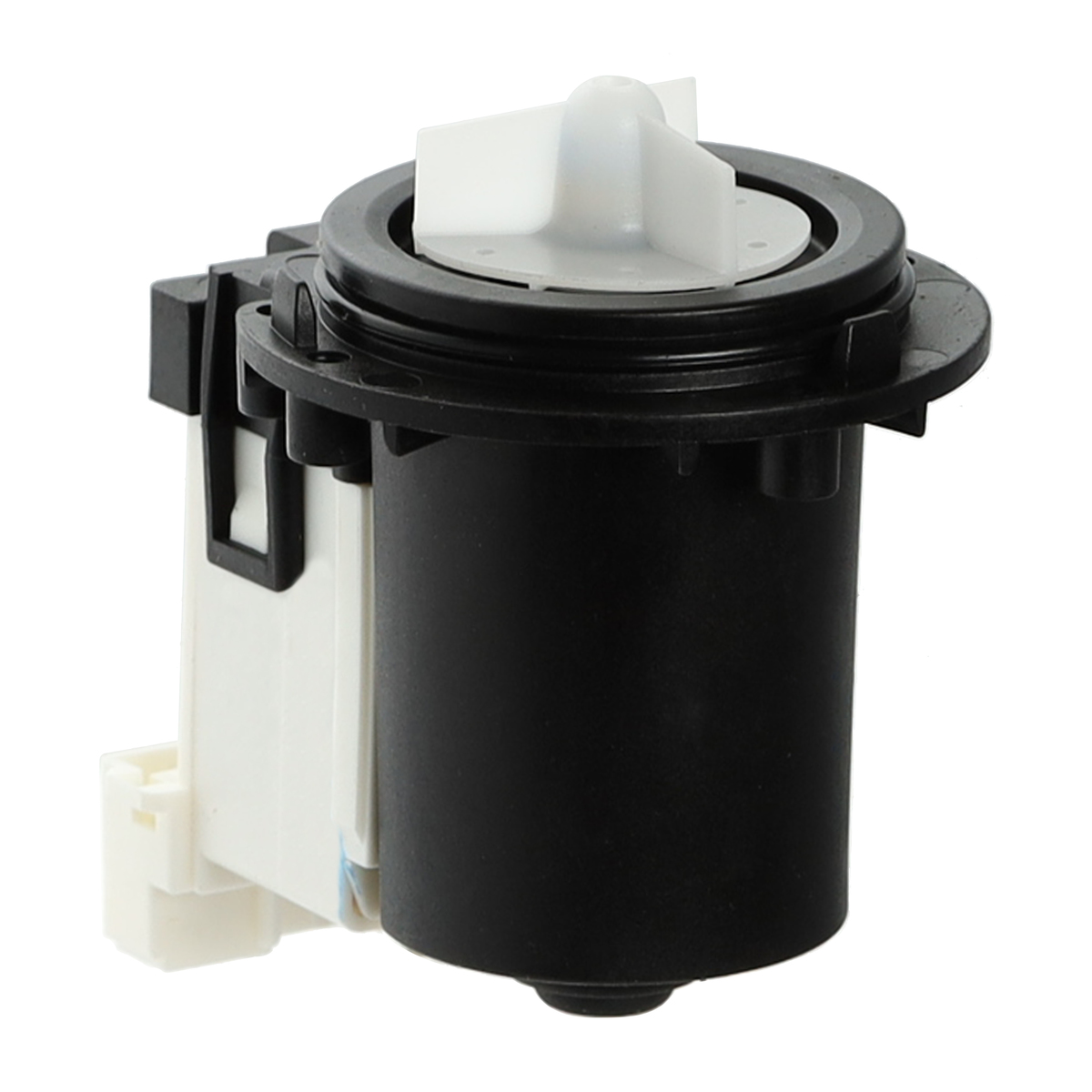

The component reference shows a pump motor with its impeller. Its role in the drain system is to move water out of the washer; it is separate from the motor that turns the drum.
For this LG WM4270HVA service in Carmel, the drain pump was replaced. The reference image gives a clear view of the component, while the on-site photographs show the actual assembly and replacement work.
The Assembly During Replacement

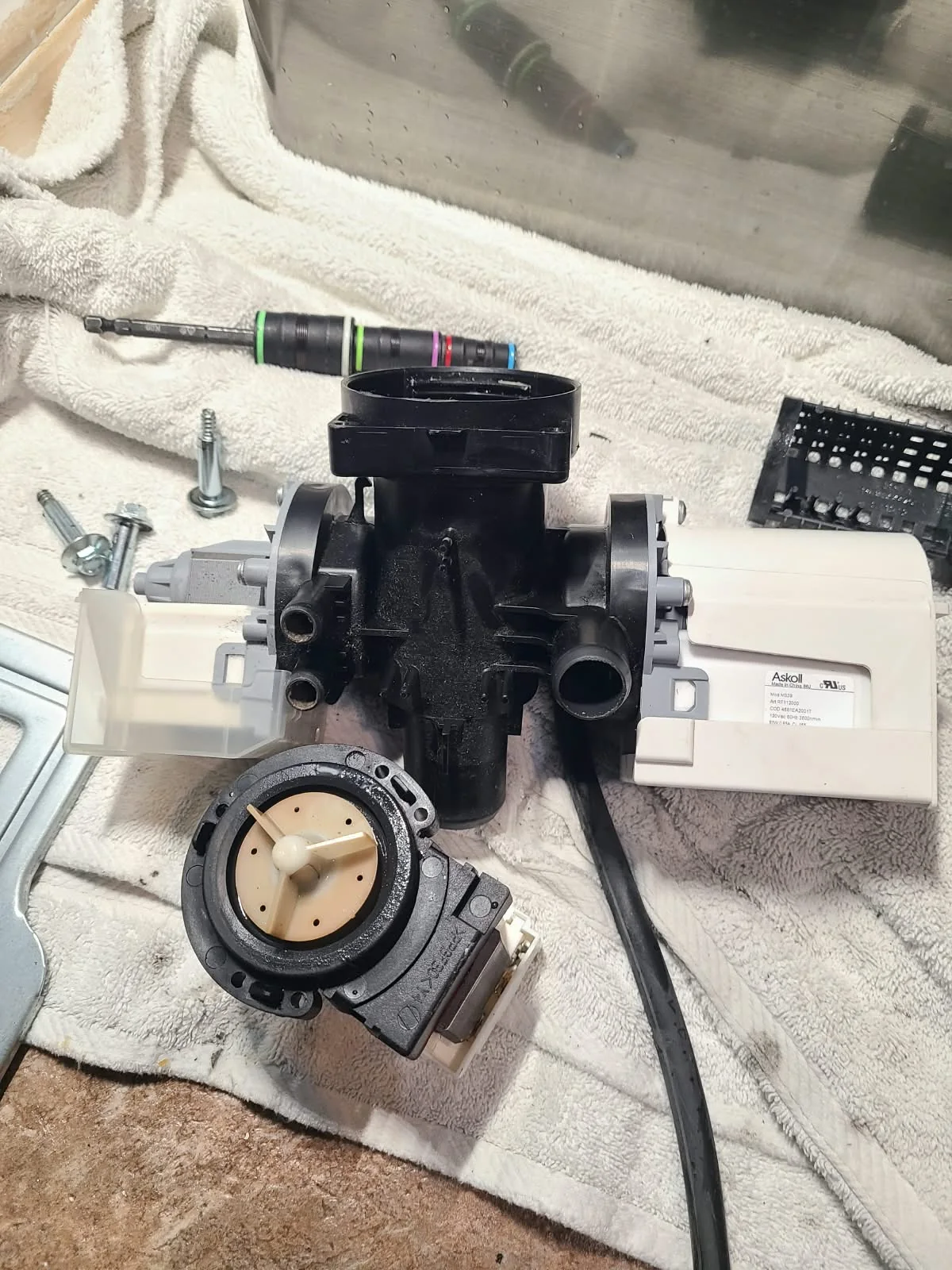

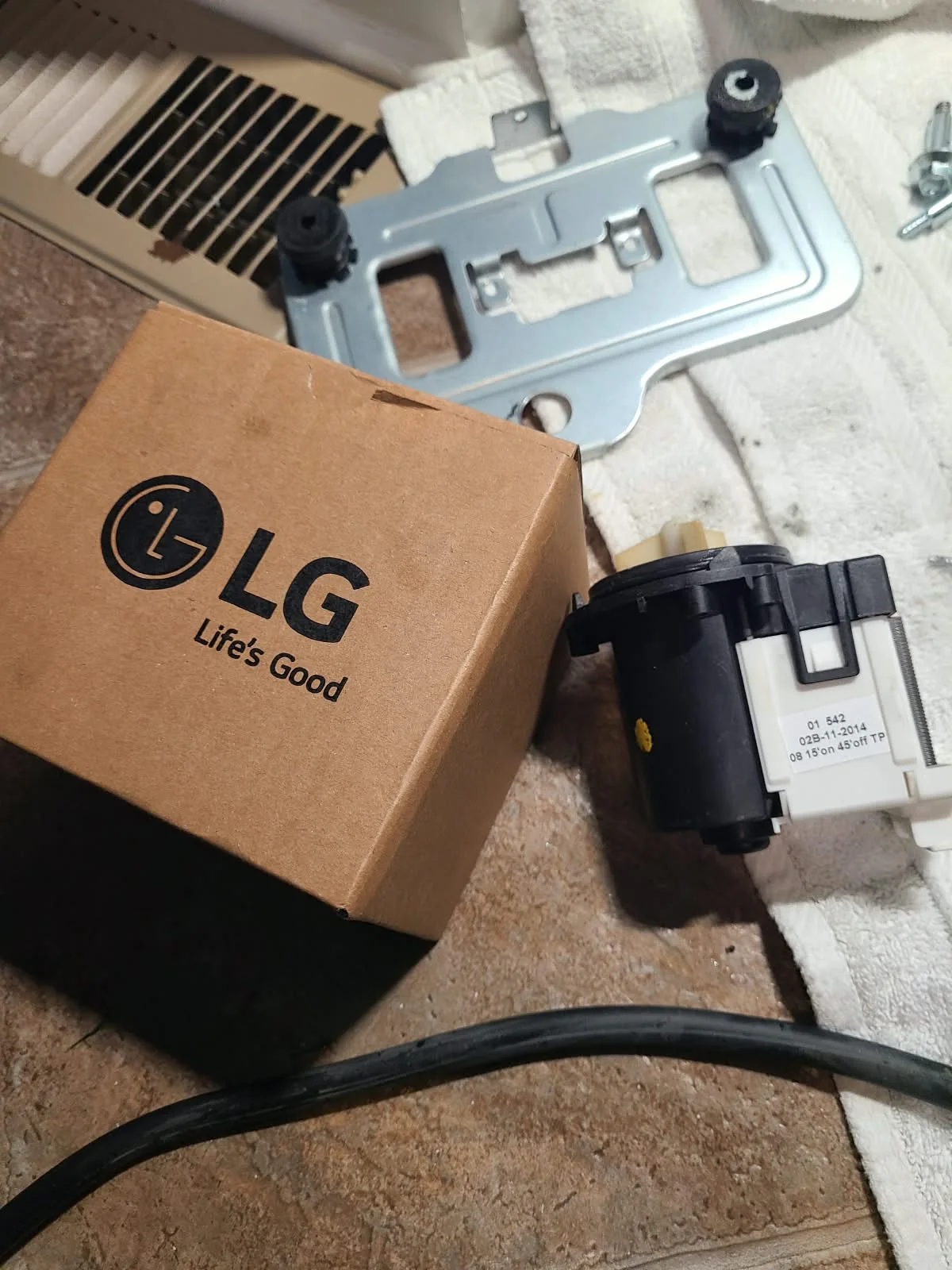

With the assembly out for service, the pump housing and a detached pump motor can be seen on a towel. A second photograph shows a pump beside LG packaging and the mounting base.
These views show why a drain pump replacement involves more than the visible filter cap: the pump motor is attached to the housing within the lower cabinet.
Pump Assembly Back in Place

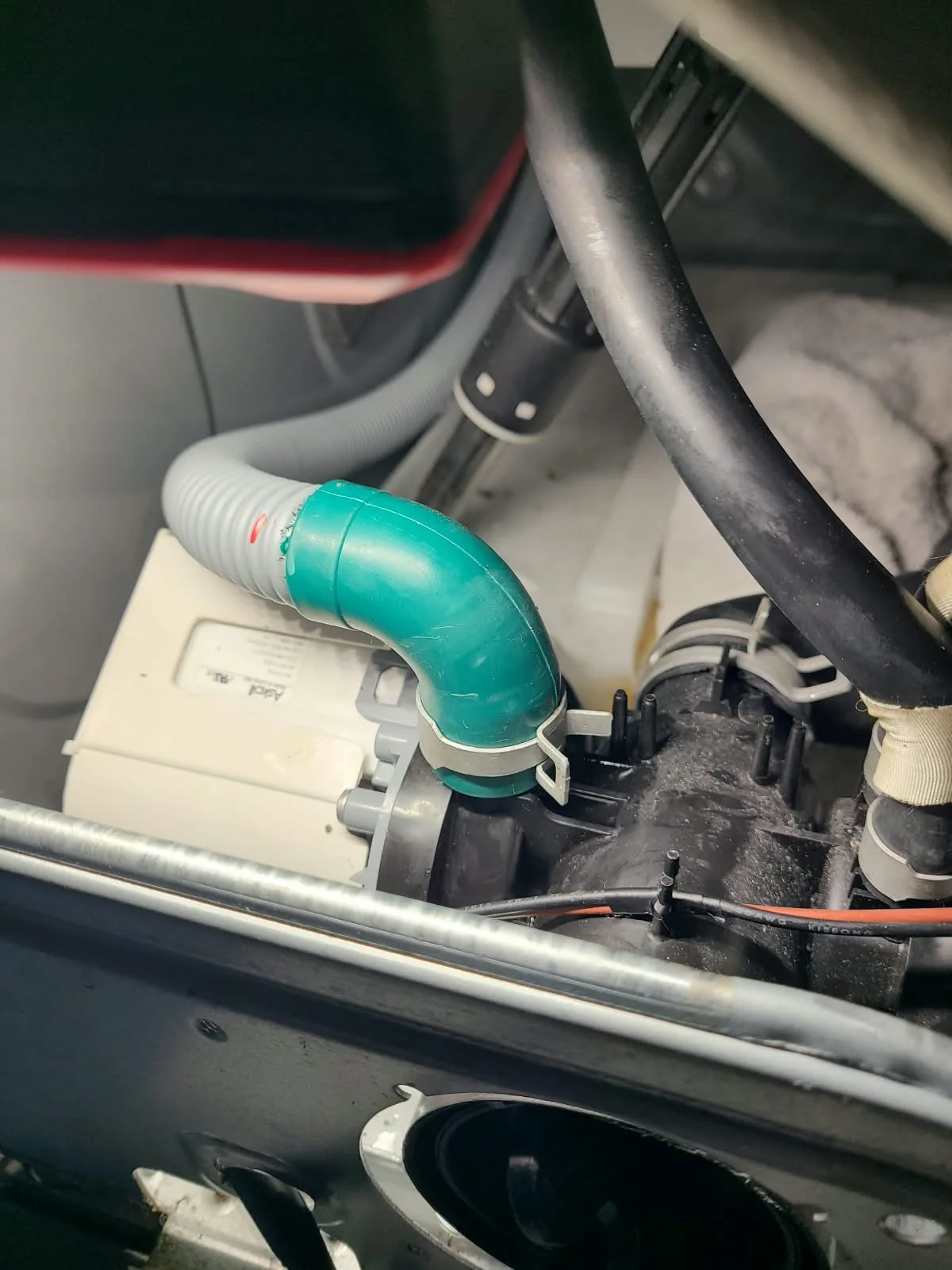

After the replacement, the pump assembly was returned to the lower cabinet. This photograph shows the assembly with the hoses connected, including the green elbow visible in the earlier access photographs.
The service sequence then continued with putting the washer back together. The images document the component location and reassembly without relying only on a product photograph.
Reassembled at the Carmel Home

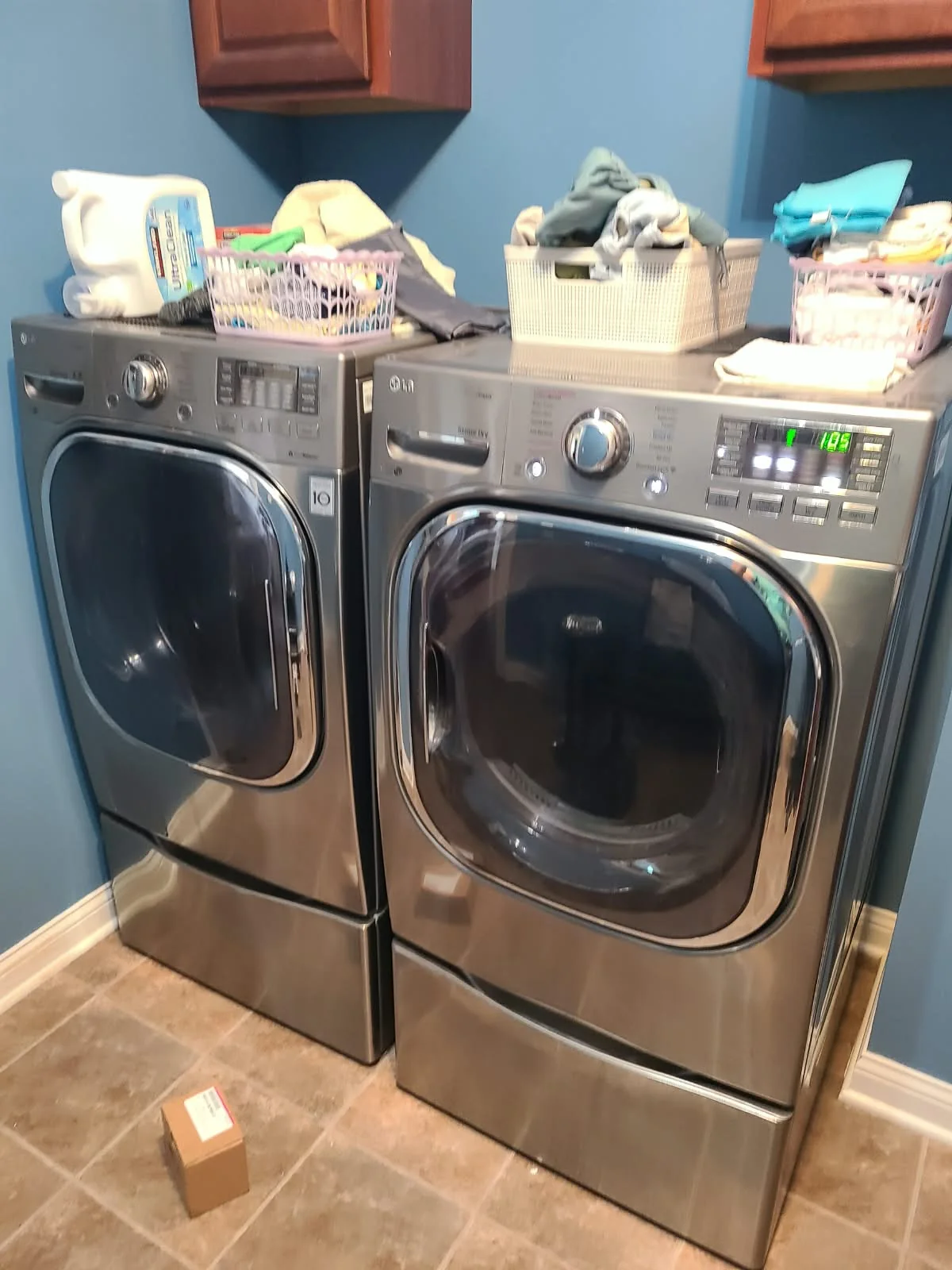

The final photograph shows the laundry appliances back together. The washer is on the right, with its display powered on; the appliance on the left is the dryer.
This visit addressed the reported drain-cycle noise and failure to remove water through a drain pump replacement on the LG WM4270HVA.
Additional Work: Replacing a Torn Dryer Flex Pipe

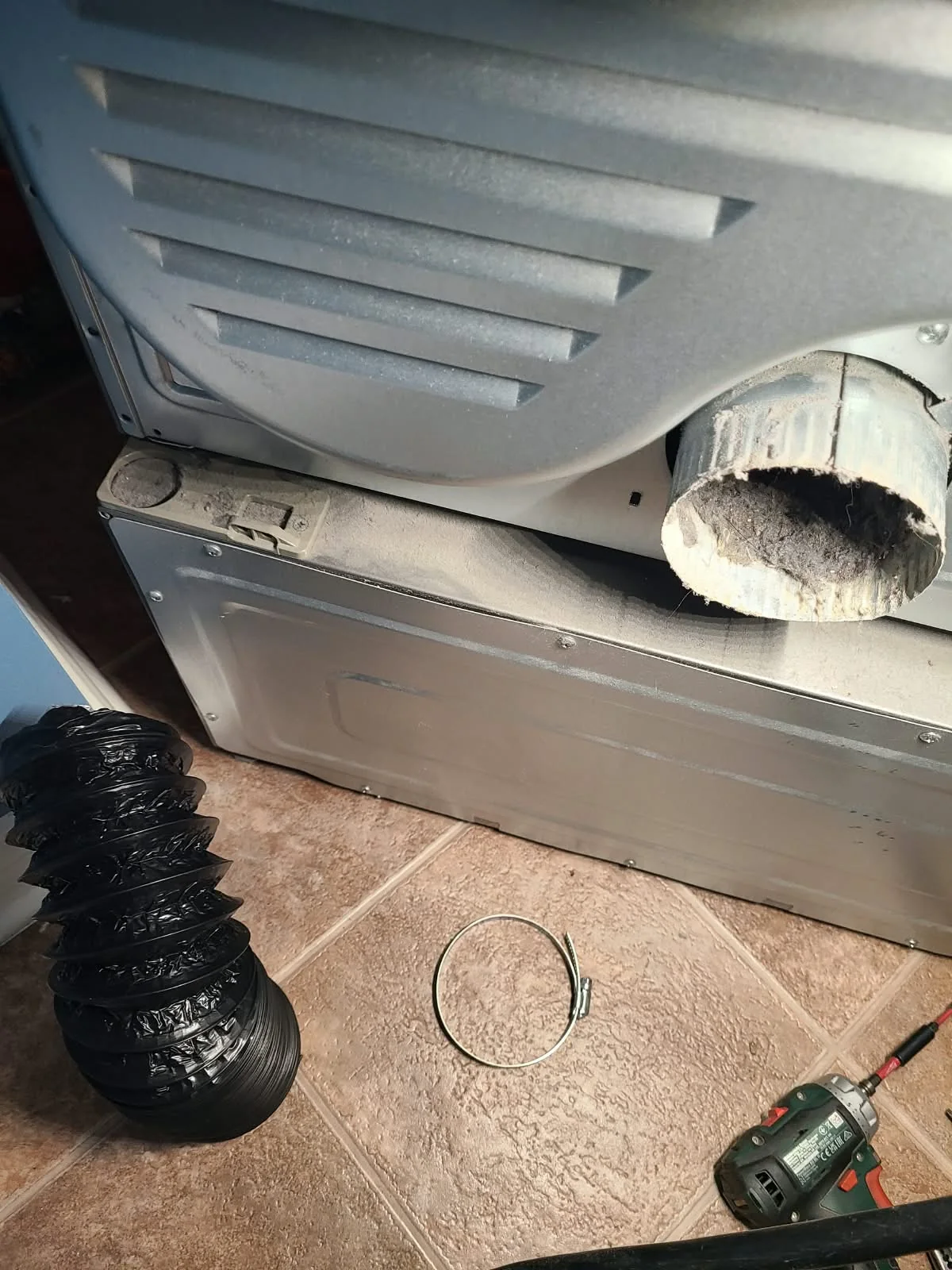

During the same service visit in Carmel, Indiana, we also replaced the dryer's old flexible exhaust hose, often called a dryer flex pipe. The old hose was torn and needed replacement, so it was removed and a new hose was installed between the dryer outlet and the wall connection.

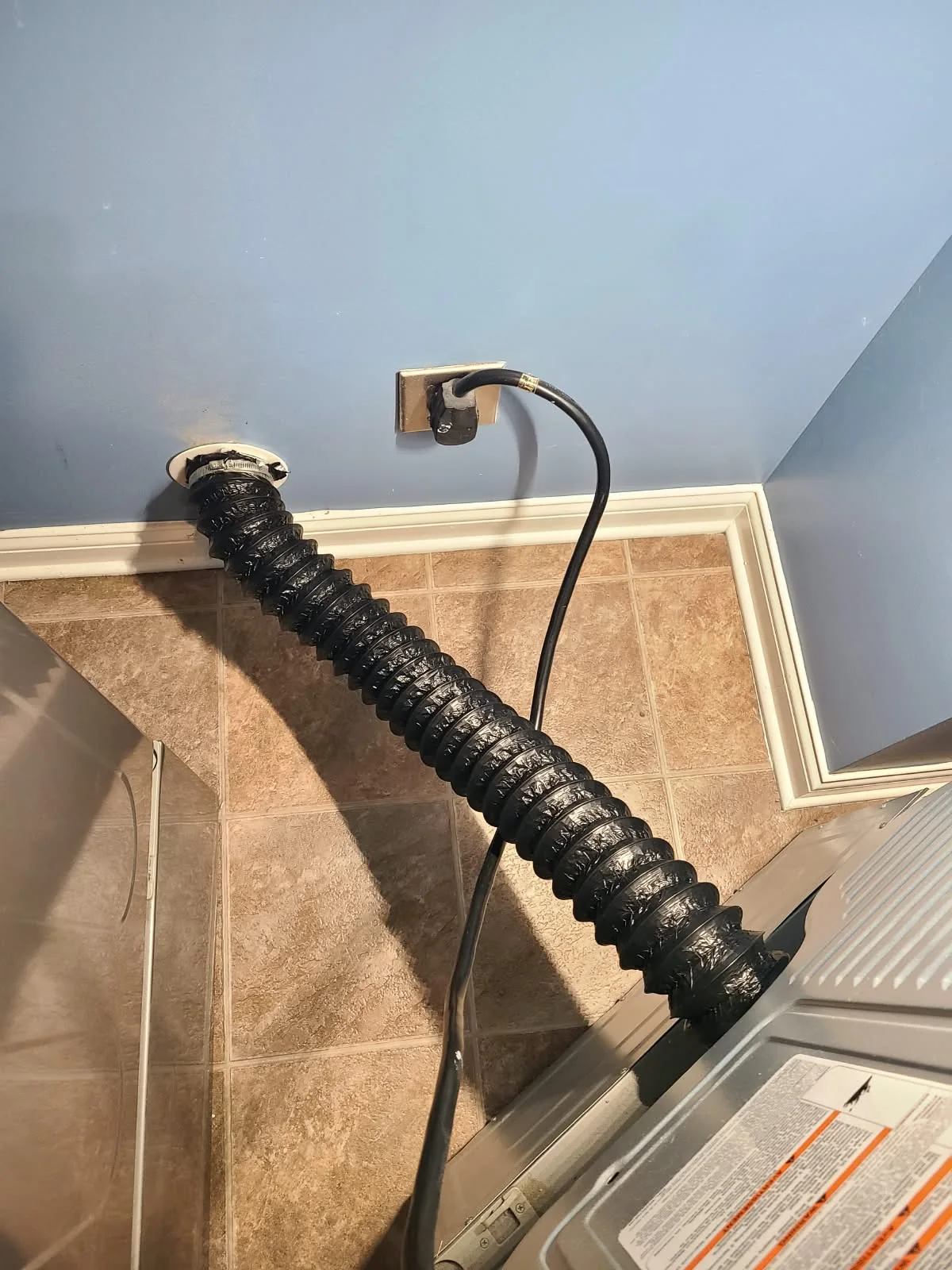

This was separate work on the dryer, not part of the LG washer's drain system. The photographs show the new hose beside the appliance before installation and then connected behind the dryer.

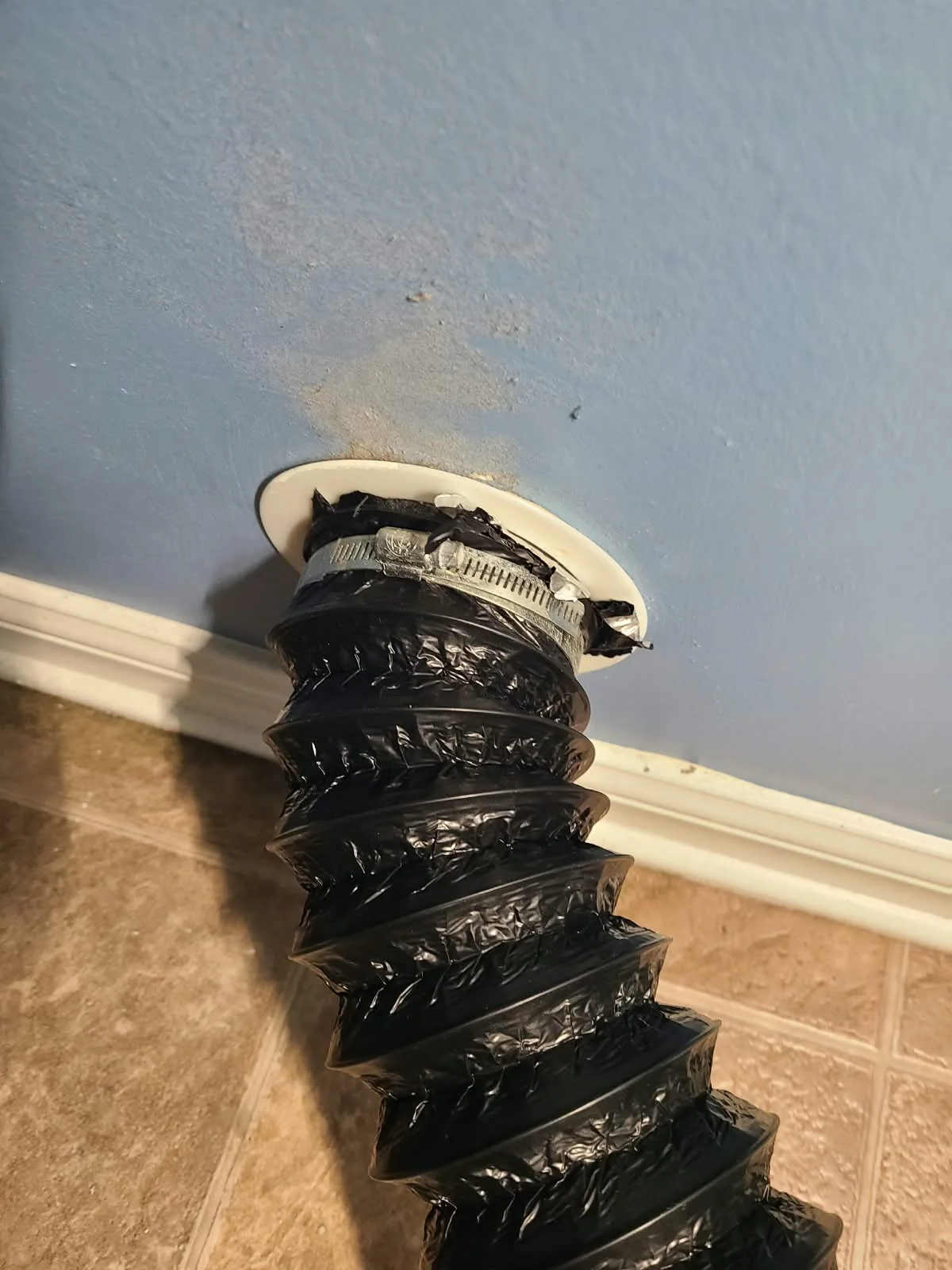

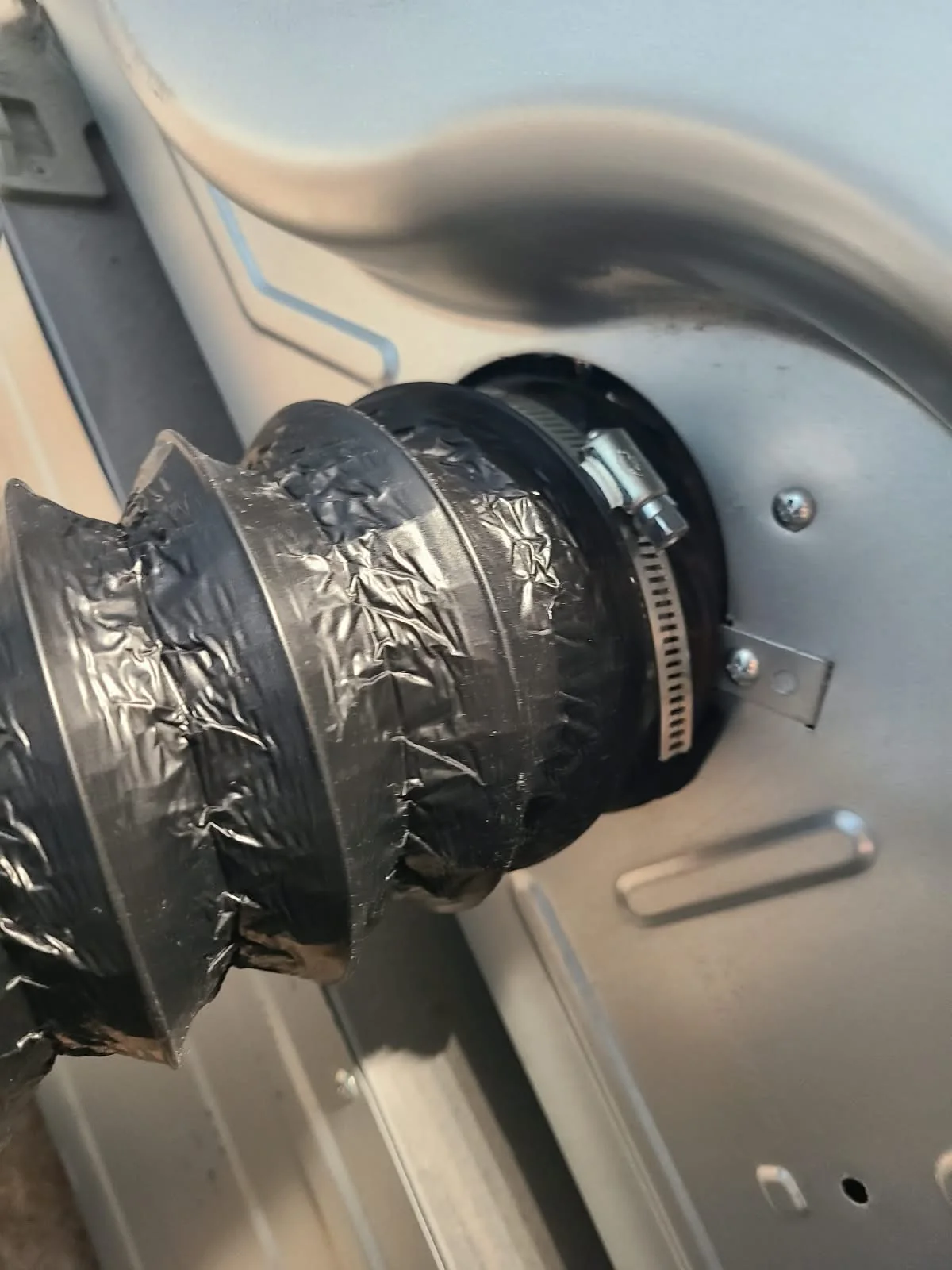

The detail photographs below show both ends of the replacement hose: the wall connection and the dryer exhaust outlet.
LG Washer Not Draining: Common Questions
Does noise during draining always mean the pump is bad?
No. The sound and lack of drainage need to be assessed together. LG also identifies a blocked pump filter or drain hose as possible causes of drainage trouble. See LG's water-not-draining guidance. A pump replacement should follow an assessment of the individual washer.
Is this the same as a washer making noise during spin?
Not necessarily. This customer described the noise when the drain cycle began. Tell your technician whether the sound happens while filling, washing, draining or spinning, and whether water remains inside.
Should I keep restarting a washer that will not drain?
Stop the cycle and arrange help if the problem persists. Do not force the door open with water inside. Before attempting any owner-level filter maintenance, follow the instructions for your model, disconnect power and allow hot water to cool. Removing a filter can release retained water.
What should I provide when booking LG washer repair?
Provide the full model number, your service address, the stage of the cycle where the problem occurs and any code actually shown on the display. Mention both the unusual noise and the water remaining in the machine.
LG Washer Repair in Carmel, Indiana
For an LG washer that will not drain or makes an unusual noise during draining, Alex Appliance Repair provides washer repair in Carmel, Indiana. Share the model and symptoms when booking so we can discuss your appliance.
For another documented visit involving a different LG model, see our LG WM3997HWA drain pump replacement in Carmel, or browse recent repair stories. Alex Appliance Repair is an independent service operated by Aksenov LLC.
