Water Left in the Drum of an LG Washer
This service visit in Carmel, Indiana involved an LG washer that was not pumping water out of the drum. Water remained inside instead of being discharged, leaving the homeowner with a drainage problem that needed attention before normal laundry use could resume.
The repair addressed the LG drain pump. The standing water was removed with a wet vacuum, the washer was opened for access, and the old pump was removed and replaced. The photographs below follow that work from access to the replacement components.

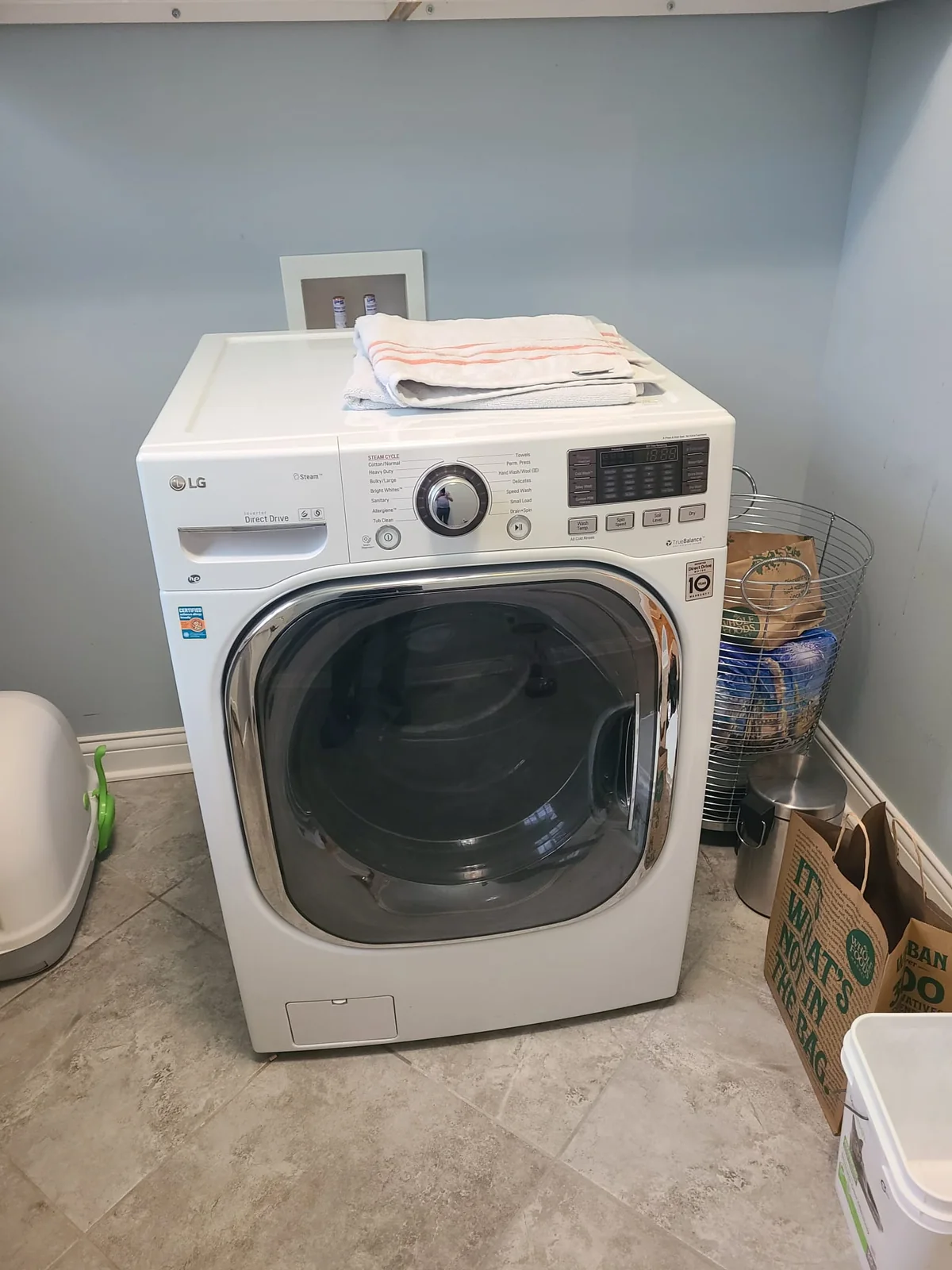

Identifying the Model: LG WM3997HWA /01
The appliance label identifies the machine as LG WM3997HWA /01. The model number is useful when arranging service because washers that look similar can have different internal layouts and component requirements.
For this visit, the reported symptom was water remaining in the drum and not being pumped out. The model label and service photographs document the actual machine involved, rather than a generic example of a washer repair.

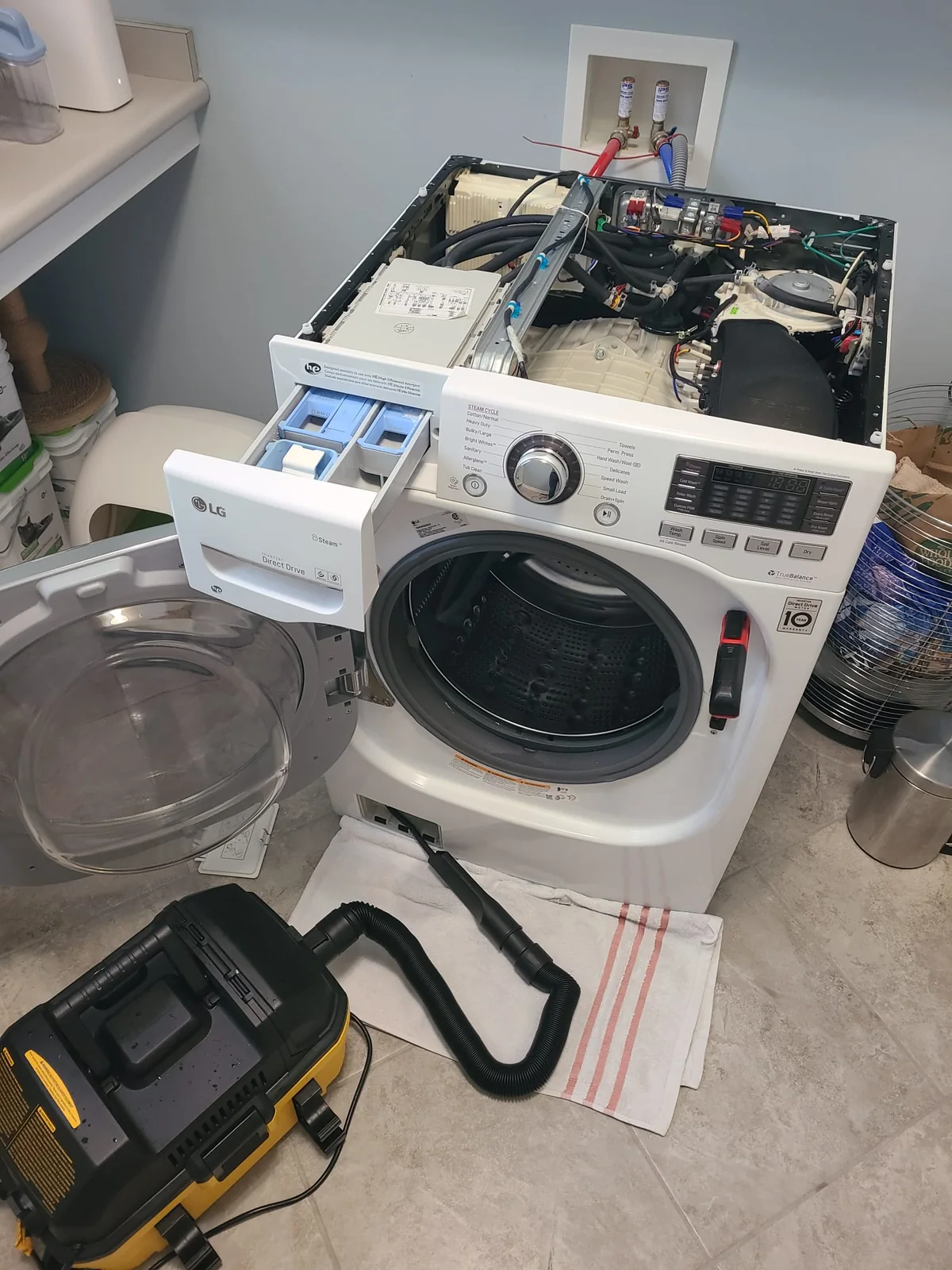

Removing the Water Before Pump Access
The remaining water had to be managed as part of the repair. A wet vacuum was used to extract water from the washer, and towels were laid out around the working area. The photograph shows the vacuum and hose alongside the partially opened machine.
Removing the water was preparation for the pump work, not the repair itself. Emptying the drum does not replace the component responsible for pumping water away during operation. The next stage was to gain access to that component.

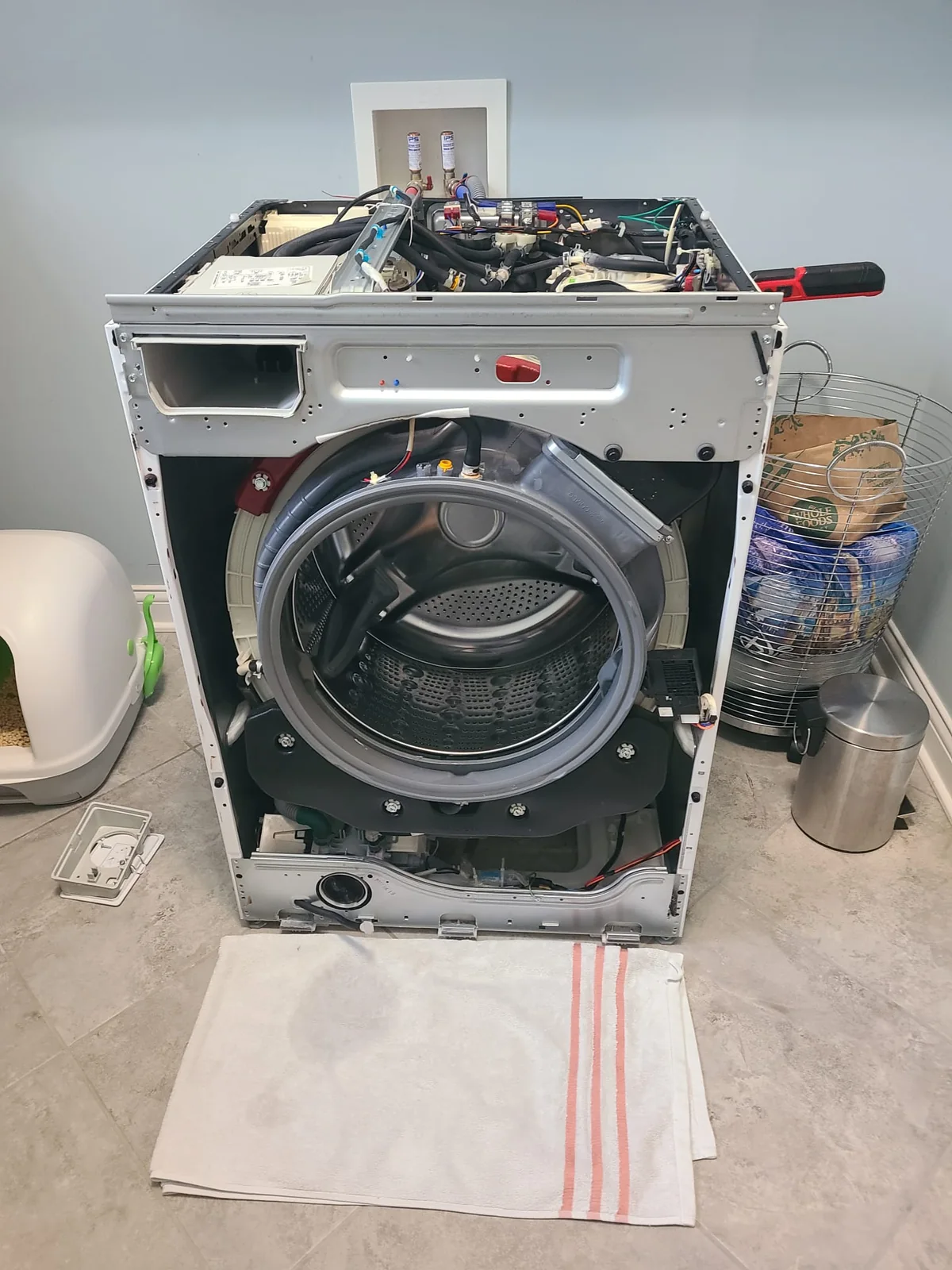

Opening the Washer to Reach the Pump Assembly
The washer was disassembled to reach the pump area beneath the drum. With the front panel removed, the lower pump housing, connected hoses and surrounding components became accessible. This wider view shows where the repair took place inside the cabinet.
The exploded-view diagram in the visit overview provides a reference for the pump position. It is a component-layout illustration, while the service photographs show the actual washer and the parts removed during this job.

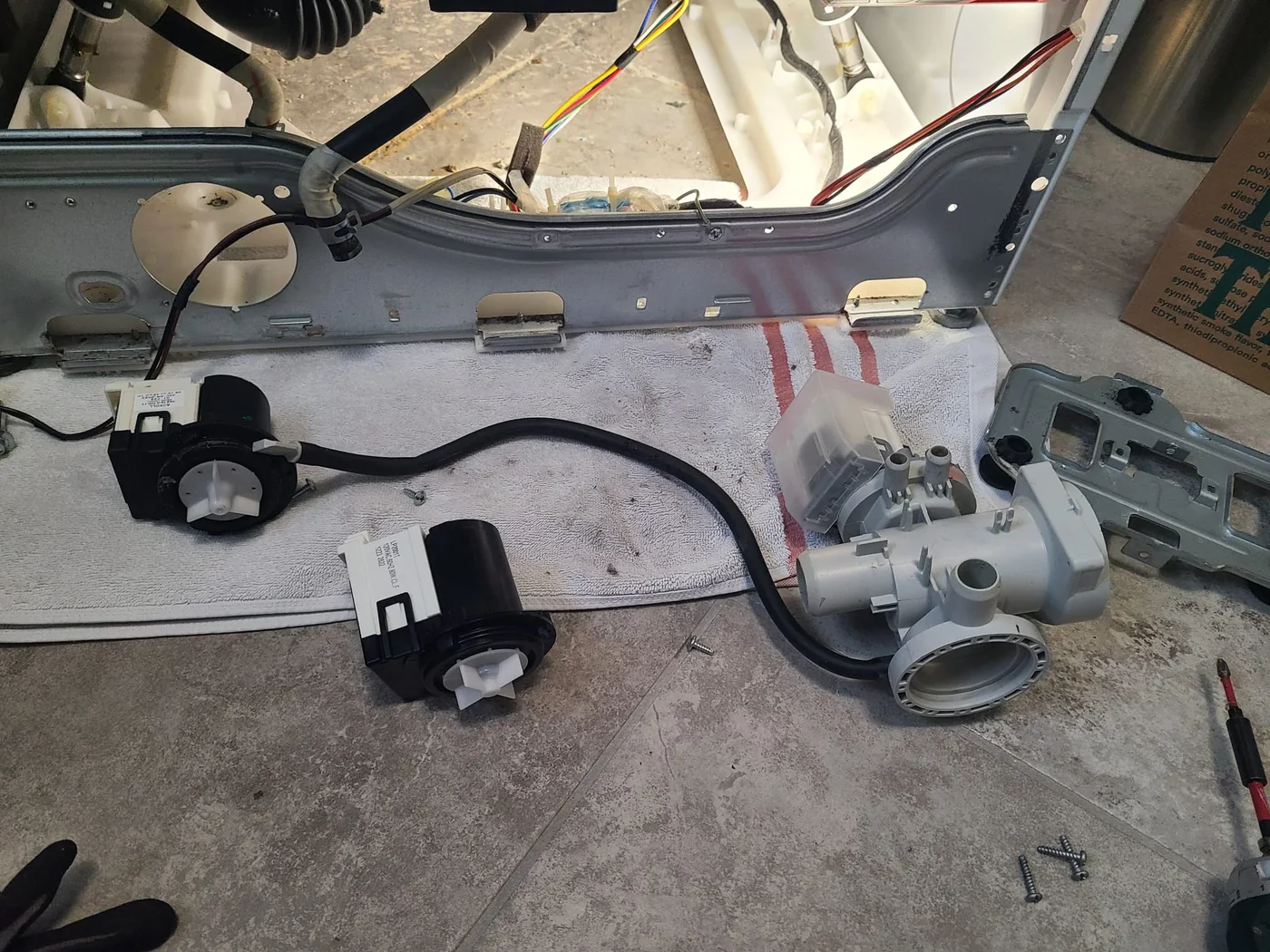

The Old Drain Pump and Its Replacement
The old LG drain pump was removed, and a replacement drain pump was installed. The side-by-side photograph shows both pumps next to the removed housing, making this stage of the work visible without relying on a stock image.
The documented replacement was the drain pump. The photograph also includes the housing and other parts of the assembly; it should not be read as a claim that every component shown was replaced. No additional board, motor or drum repair is described for this visit.

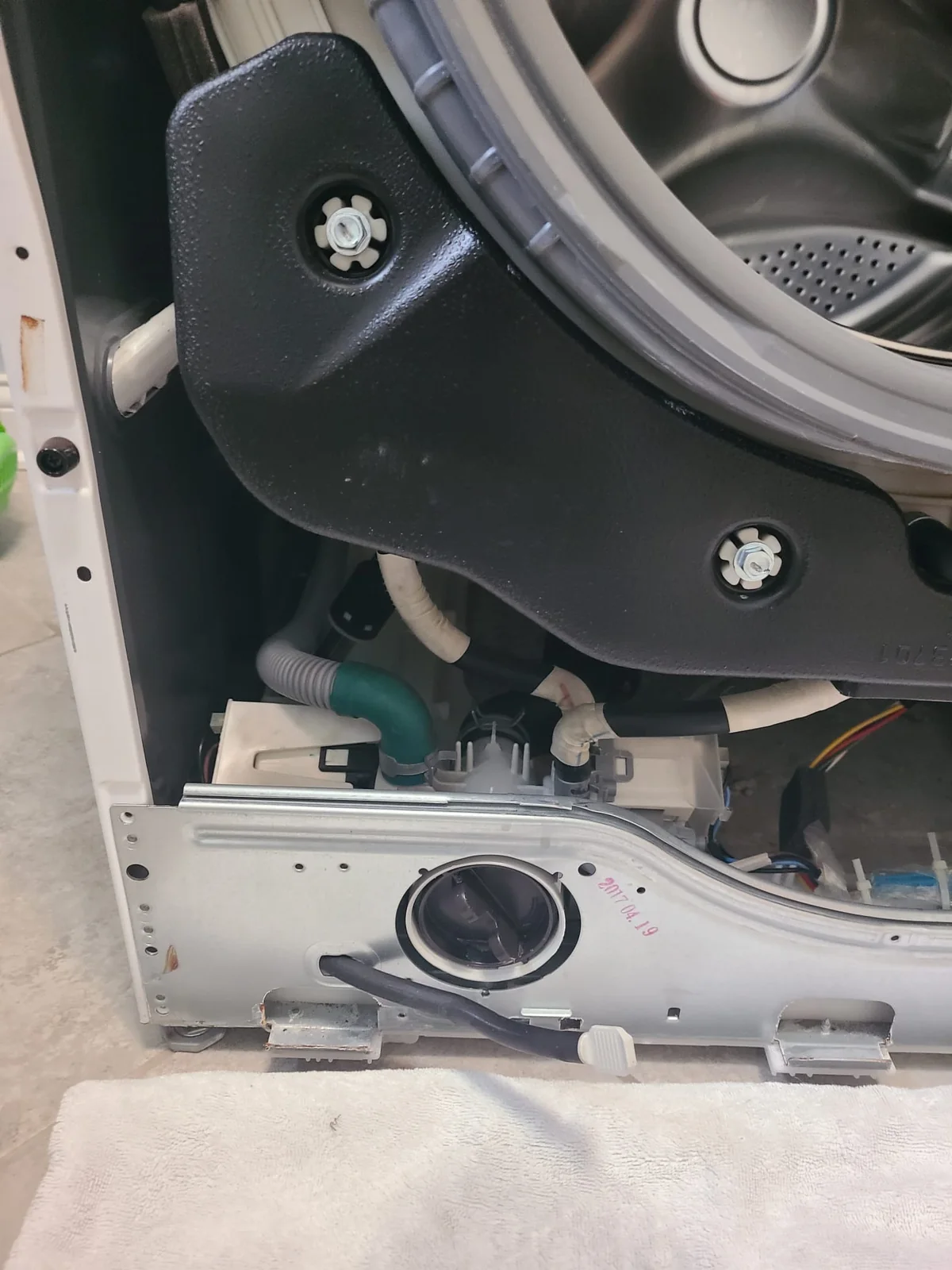

Working in the Lower-Front Pump Area
The close-up shows the pump housing and hose connections below the drum. This is the area that needed access for removal of the old pump and installation of the replacement. A small exterior filter opening and full access to the pump assembly are not the same thing.
For the homeowner, the important distinction is between removing trapped water and addressing the drainage fault. In this repair, the work went beyond water removal: the LG drain pump itself was replaced.
What to Tell Us When a Washer Will Not Drain
When requesting service, include the model number, whether water remains in the drum, and when the cycle stops. Mention any displayed error message or unusual sound if you observed one. Those details help describe the problem without assuming that every drainage complaint needs the same repair.
This article documents one pump replacement on an LG WM3997HWA /01. It is not a diagnosis for every washer with water inside. Leave internal disassembly and electrical work to a qualified service professional, and avoid forcing the door open when water is visible inside.
