The Range Had Power, but Nothing Would Heat
The homeowner in Carmel, Indiana described a confusing problem: the LG electric range display worked and the controls responded, but neither the cooktop burners nor the oven would heat. A lit display made the appliance appear to have power even though its main cooking functions were unavailable.
Because both cooking areas were affected, the incoming power connection was an important part of the diagnosis. The working panel did not by itself establish that the heating circuits had their full supply.
Identifying the LG Electric Range
The appliance was an LG LDE4413ST/00 electric range, manufactured in October 2020. Its model label identifies an electric appliance rated for 120/240 V or 120/208 V operation. Both the smooth cooktop and the ovens use electric heating.
Model identification matters when selecting a replacement connection assembly. A similar-looking terminal block is not enough to establish compatibility with the range and its installation.
Diagnosis Revealed a Burned Terminal Block

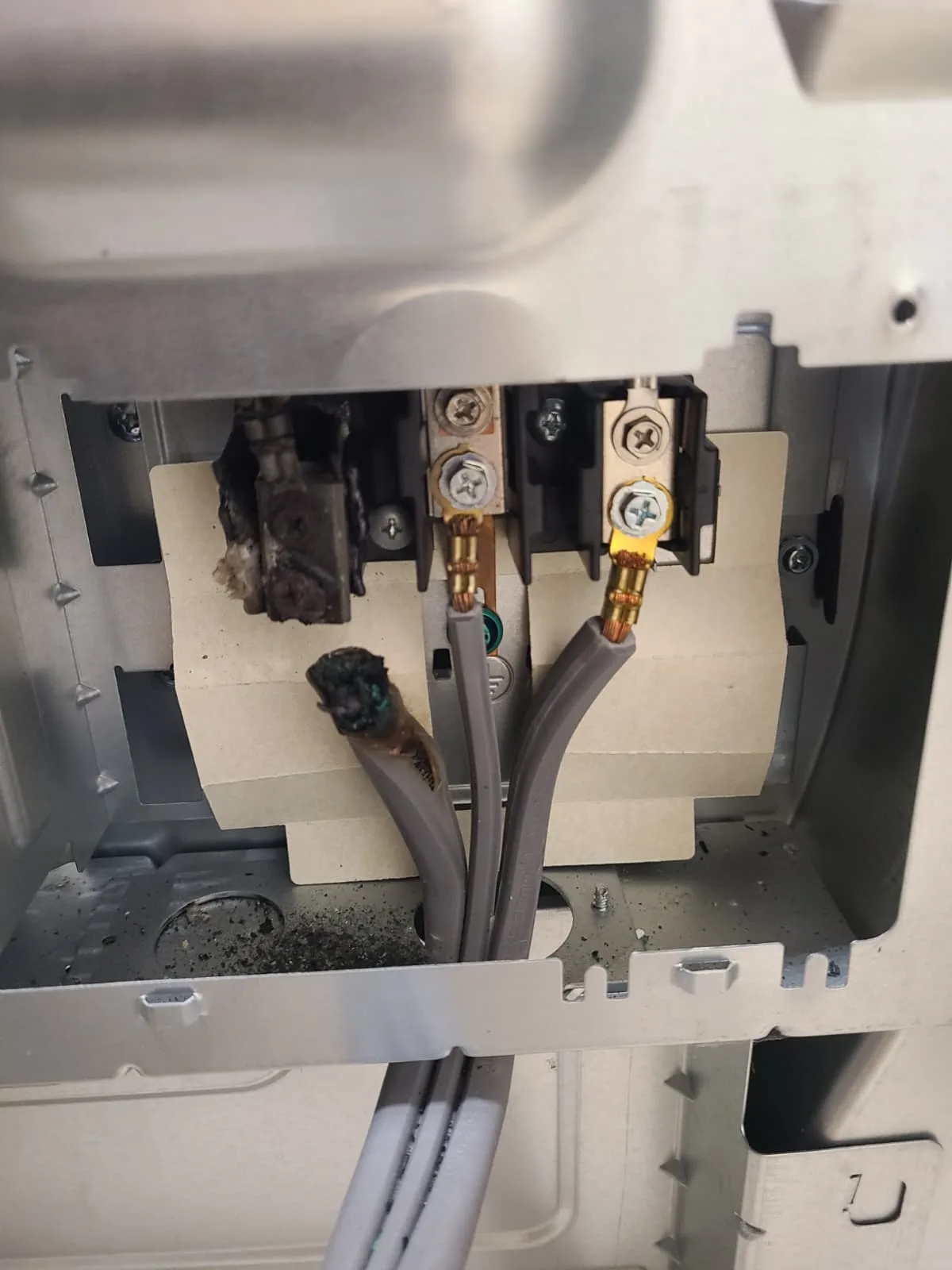

With power disconnected, inspection of the rear electrical connection compartment revealed severe heat damage at one incoming hot-line terminal. The left connection was charred, and the attached power-cord conductor was burned.
The terminal block is where the range cord connects to the appliance wiring. Damage at this shared supply point explained why several heating functions could fail together. The documented diagnosis was a failed power connection, not a failed control board.
What Caused the Terminal to Burn?
The service diagnosis identified a poor, loose connection at the hot-line terminal. When electrical contact becomes poor, resistance increases at that point. Current passing through the resistance generates heat. Under the substantial load of an electric range, that heat can damage the connector, insulation and surrounding terminal block.

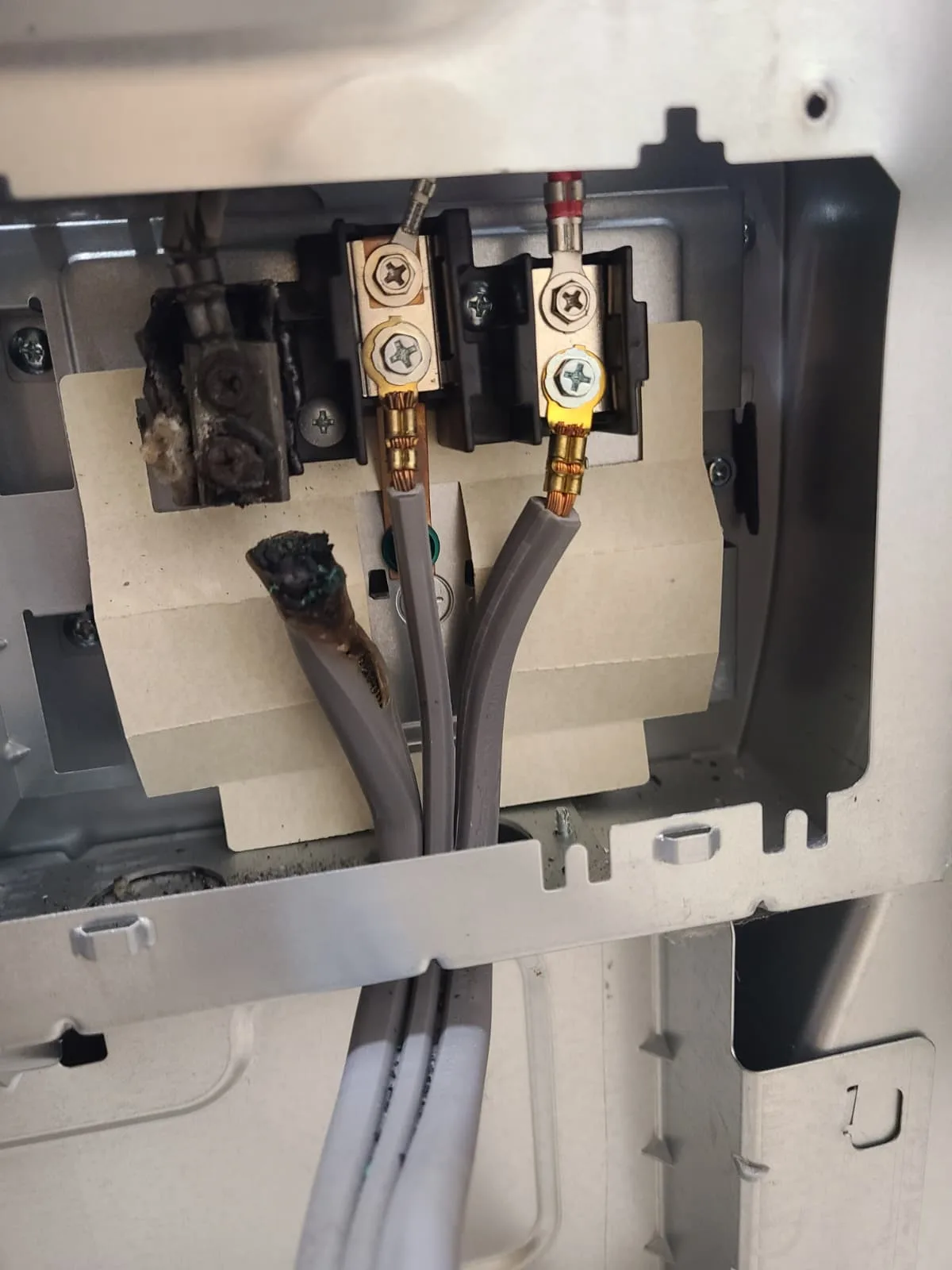

The photos show the resulting damage. They cannot establish how long the connection had been deteriorating, so no failure timeline is assigned to this repair.
The Power Cord Was Damaged Too
The damage extended beyond the terminal block. The cord conductor at the failed connection was burned and could not be reused. Replacing the block alone would have left a heat-damaged connection in the power path.
We removed both the damaged terminal block and the burned range power cord. The surrounding wiring was inspected for heat damage before the replacement components were installed.
Why the Display Still Worked
In a typical 120/240 V range installation, many control functions can operate from one hot line to neutral at approximately 120 V. Major heating loads use the supply between both hot lines. If one line is interrupted, the display can sometimes remain active while the cooktop and oven stop heating.
This model also lists 120/208 V operation on its label. These are supply ratings, not voltage measurements recorded during this visit. The useful clue was the combination of a working display and loss of heat in both cooking areas.
Replacing the Terminal Block and Range Power Cord
We installed a replacement terminal block and a replacement range power cord with plug. The electrical connections were secured and tightened, and the serviced connection area was checked before the range was reassembled.

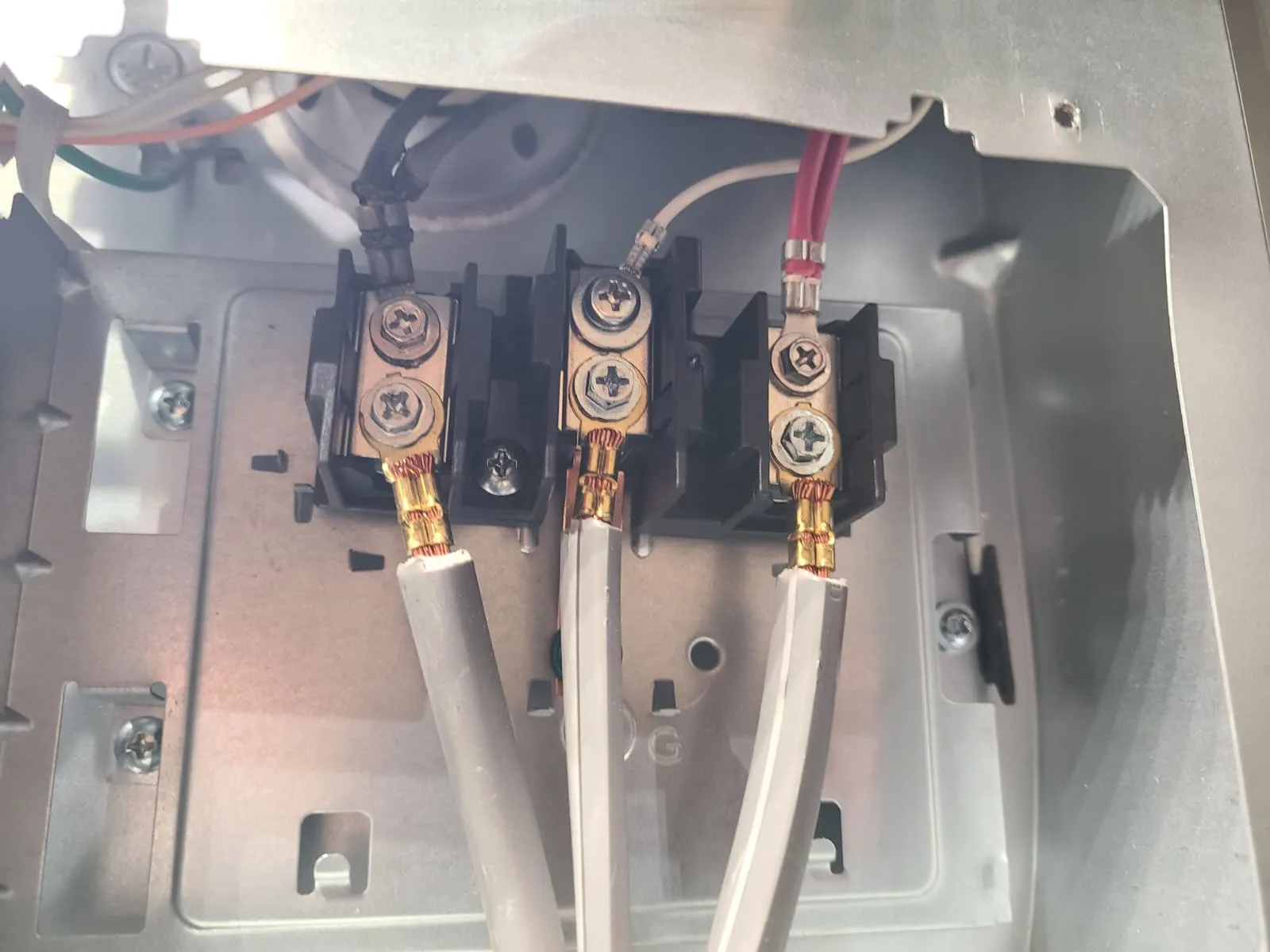

The clean replacement assembly is shown after the damaged components were removed. This repair addressed both the failed block and the damaged cord rather than reconnecting the burned conductor.
Repair Completed and Heating Restored
After reassembly, power was restored and the appliance was tested. The control panel operated normally, the cooktop burners heated correctly, and oven heating was restored.

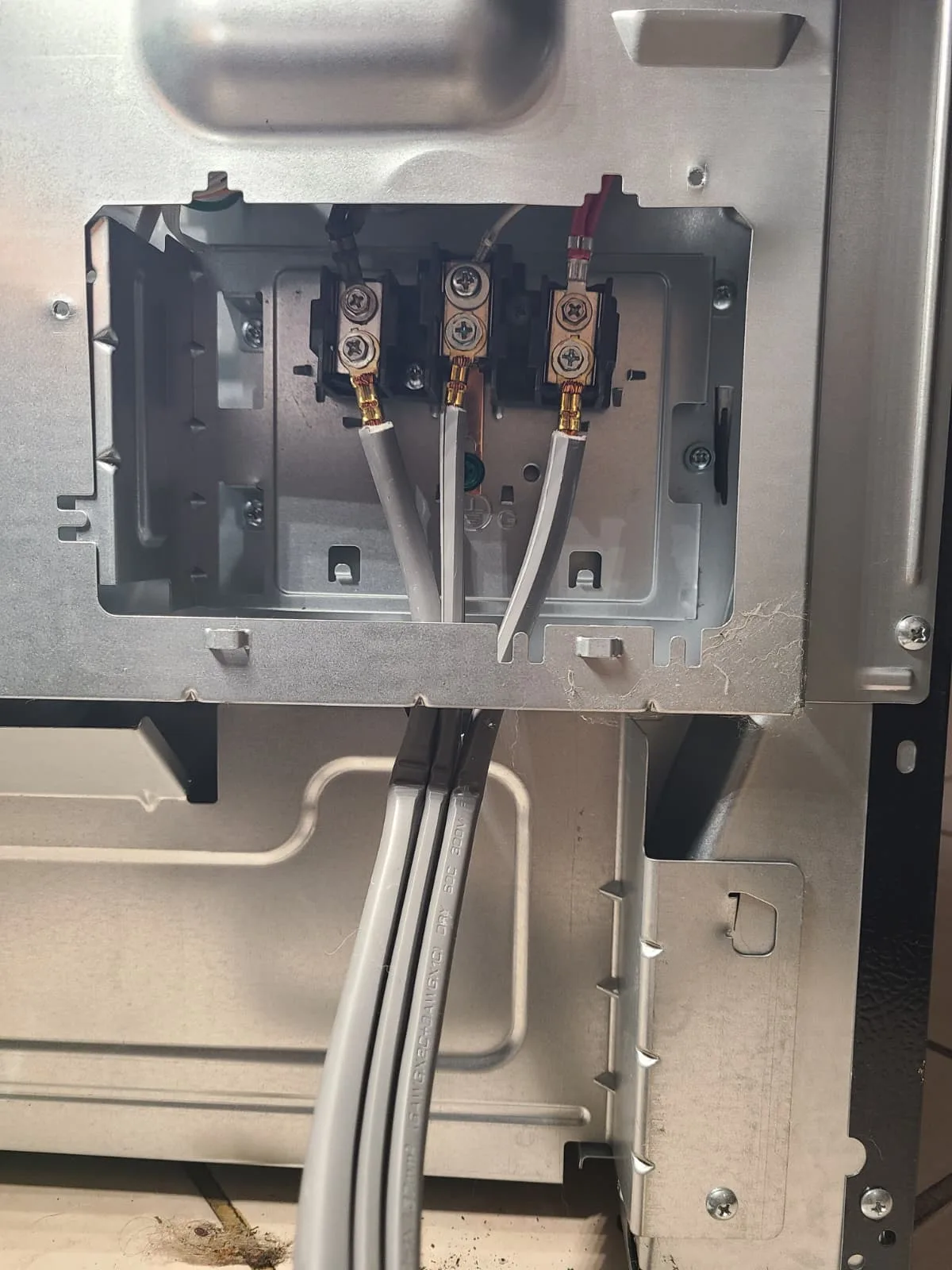

The final photograph documents the replacement connection area. The operating result comes from the supplied repair record; no unrecorded temperatures, current readings or part numbers are added.
When to Stop Using a Range
A burned power connection can present an overheating and fire hazard. If you notice a burning smell, melted insulation or signs of overheating, stop using the appliance and switch off its circuit breaker if it is safe to do so. Arrange professional inspection before using it again. Do not open the electrical compartment or handle damaged wiring while power is connected.
A working display does not rule out a supply problem. Loss of both cooktop and oven heat deserves diagnosis even when the controls still respond.
