A Maytag Dryer With No Heat

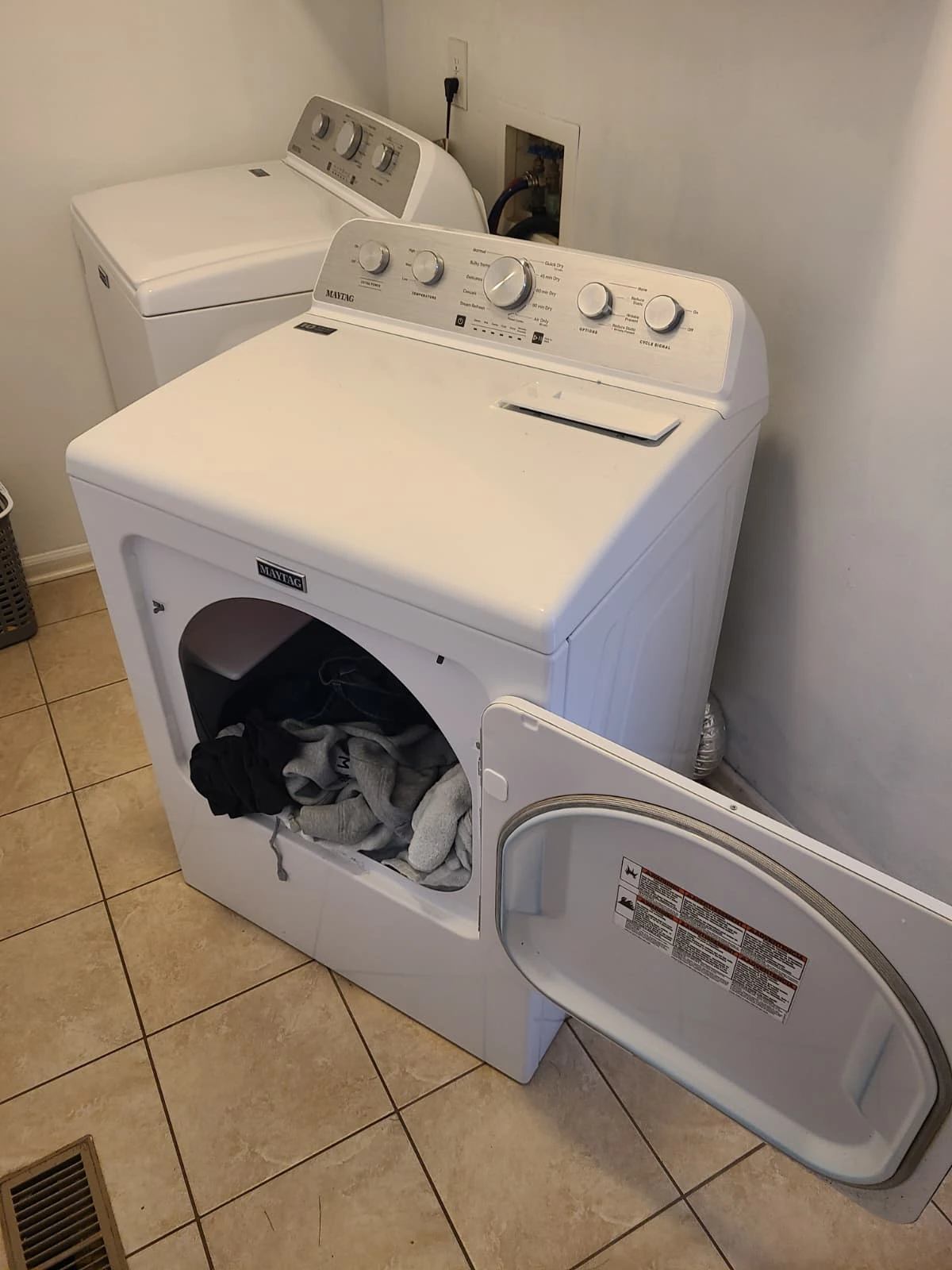

A homeowner in Noblesville, Indiana, contacted Alex Appliance Repair because their Maytag dryer was not heating at all. A no-heat complaint calls for diagnosis before choosing a replacement part: the heating element is not the only component involved in producing heat.
During this visit, the dryer was opened and inspected. The completed repair addressed two thermal-protection components and additional mechanical wear in the drum support and belt-tensioning system. Cleaning and a post-repair test were also part of the service.
Model Confirmed: Maytag MED5430MW0
The appliance label identifies this dryer as Maytag MED5430MW0. The photograph here is a crop of the original model-number area, with the serial number left out.
When booking service for a Maytag dryer that is not heating, the complete model number helps identify the correct appliance configuration. Describing whether it starts, turns the drum or produces any warmth also helps distinguish a heating complaint from a separate starting or mechanical problem.
Opening the Dryer for Diagnosis

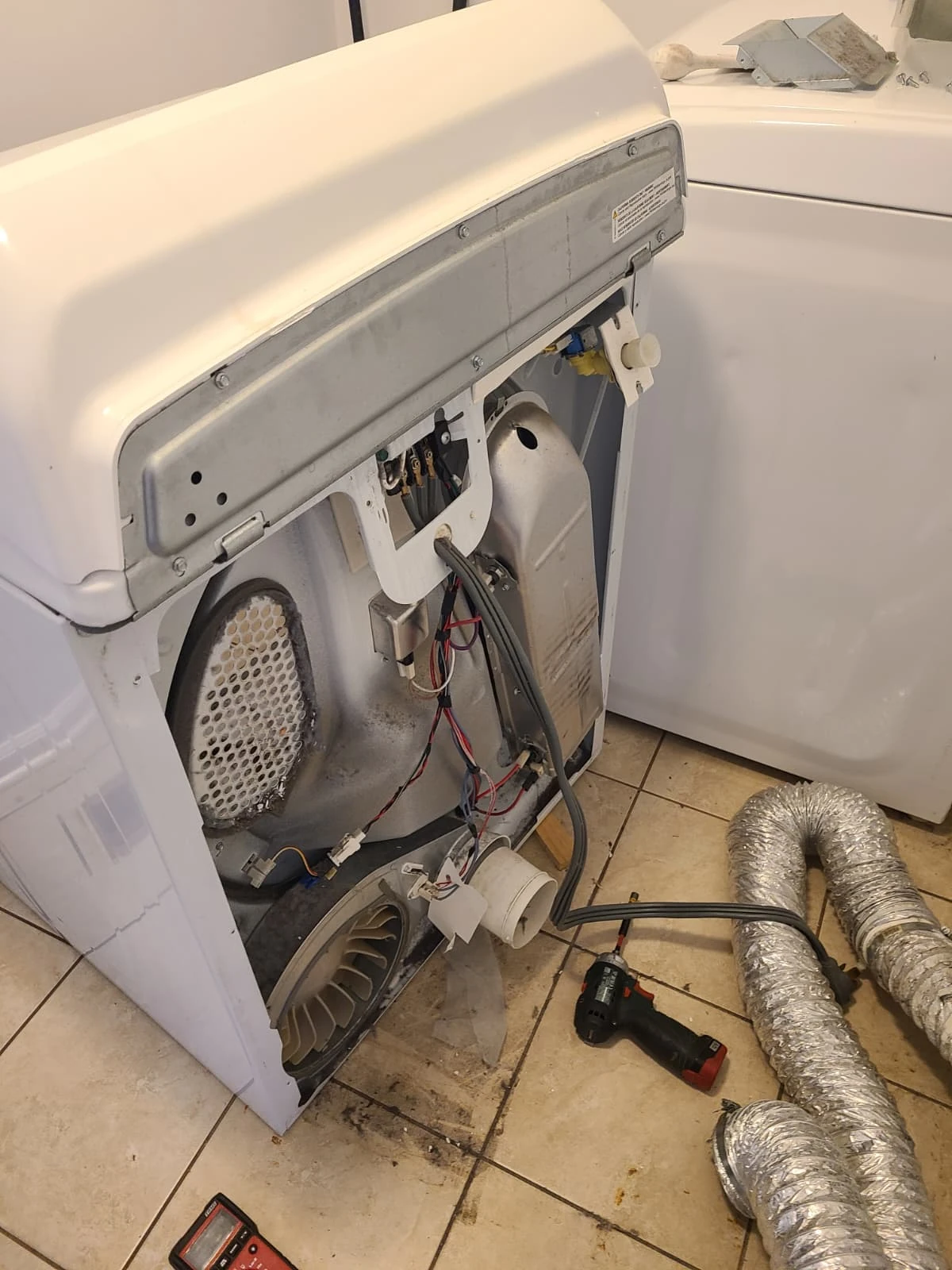

The rear panel and lint-chute assembly were removed to access the components. The technician also removed the drum to inspect its support rollers and the idler pulley near the motor.
The no-heat repair involved the thermal fuse and the heater thermal cut-off. Separately, two drum support rollers and the idler pulley were replaced. These are different systems: servicing worn drum supports does not, by itself, repair an electrical heating fault.
Replacing the Heater Thermal Cut-Off

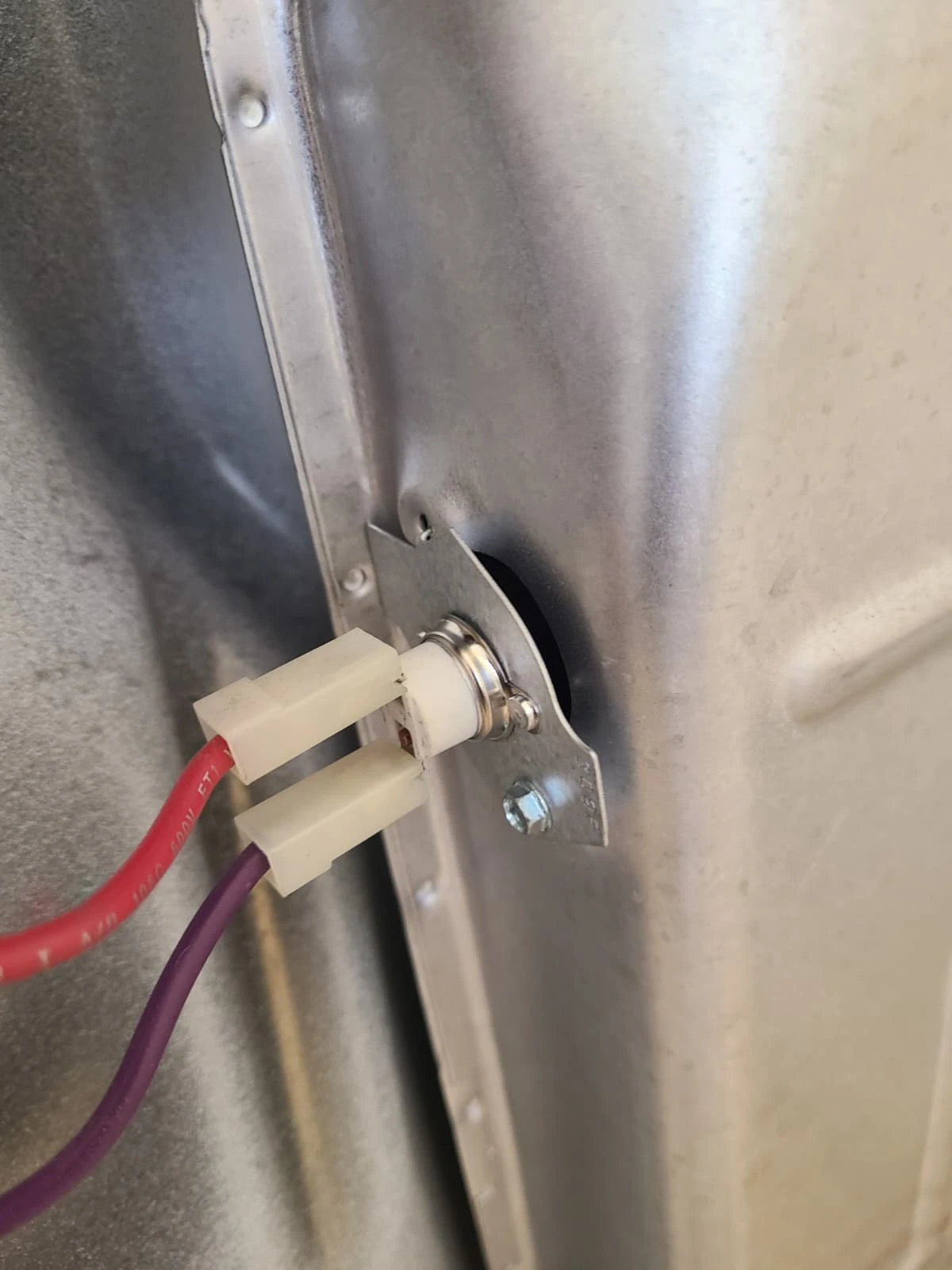

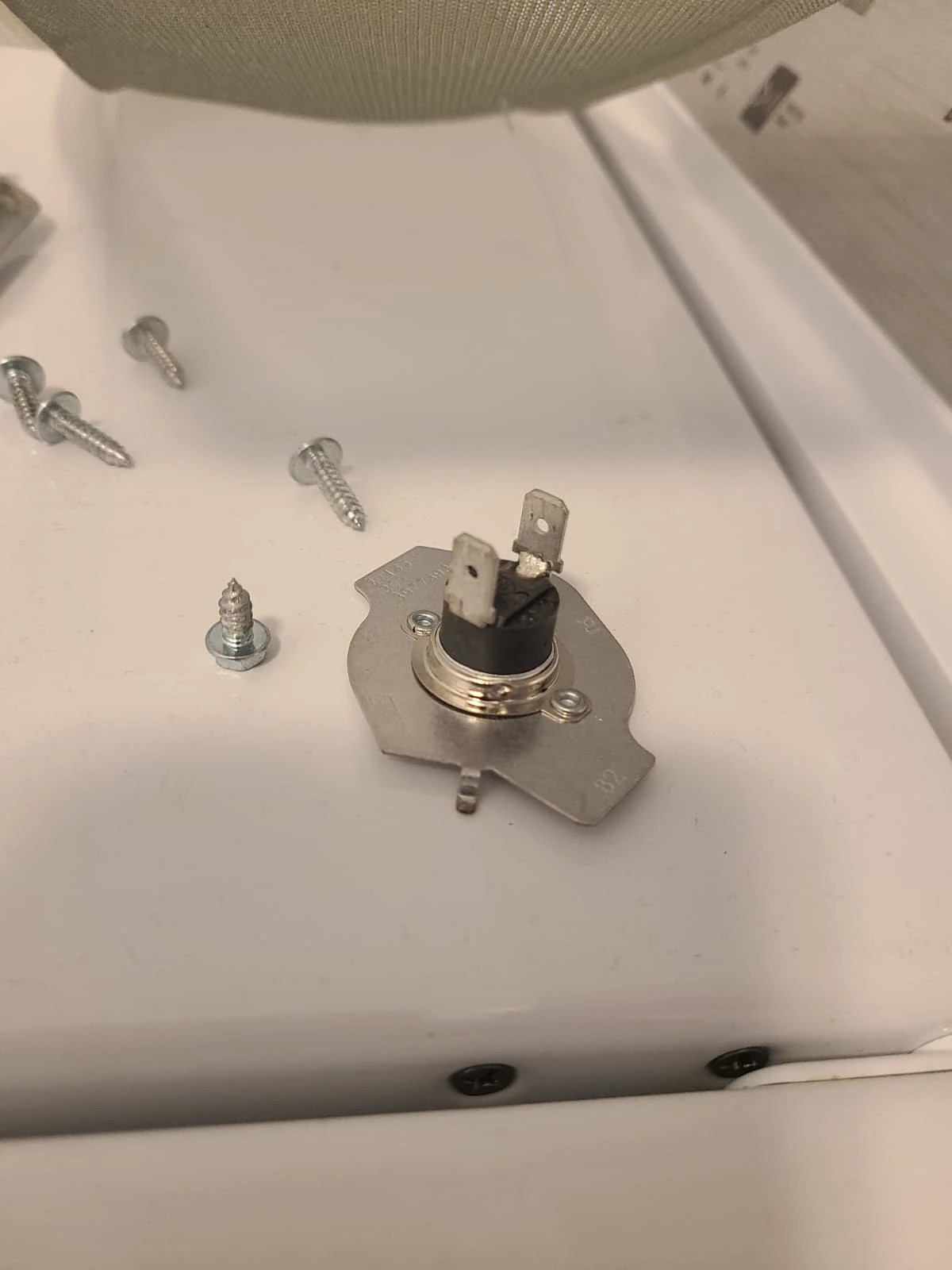

The metal-bodied component shown below is the heater thermal cut-off. The service photographs show the removed component and the replacement with red and purple wires attached.
This thermal-protection device is separate from the white thermal fuse on the blower housing. Replacing it was part of the heating repair. The photographs make it easier to distinguish the two components when discussing the service; wire colors alone should not be used to identify a replacement part.
The White Thermal Fuse Was Also Replaced

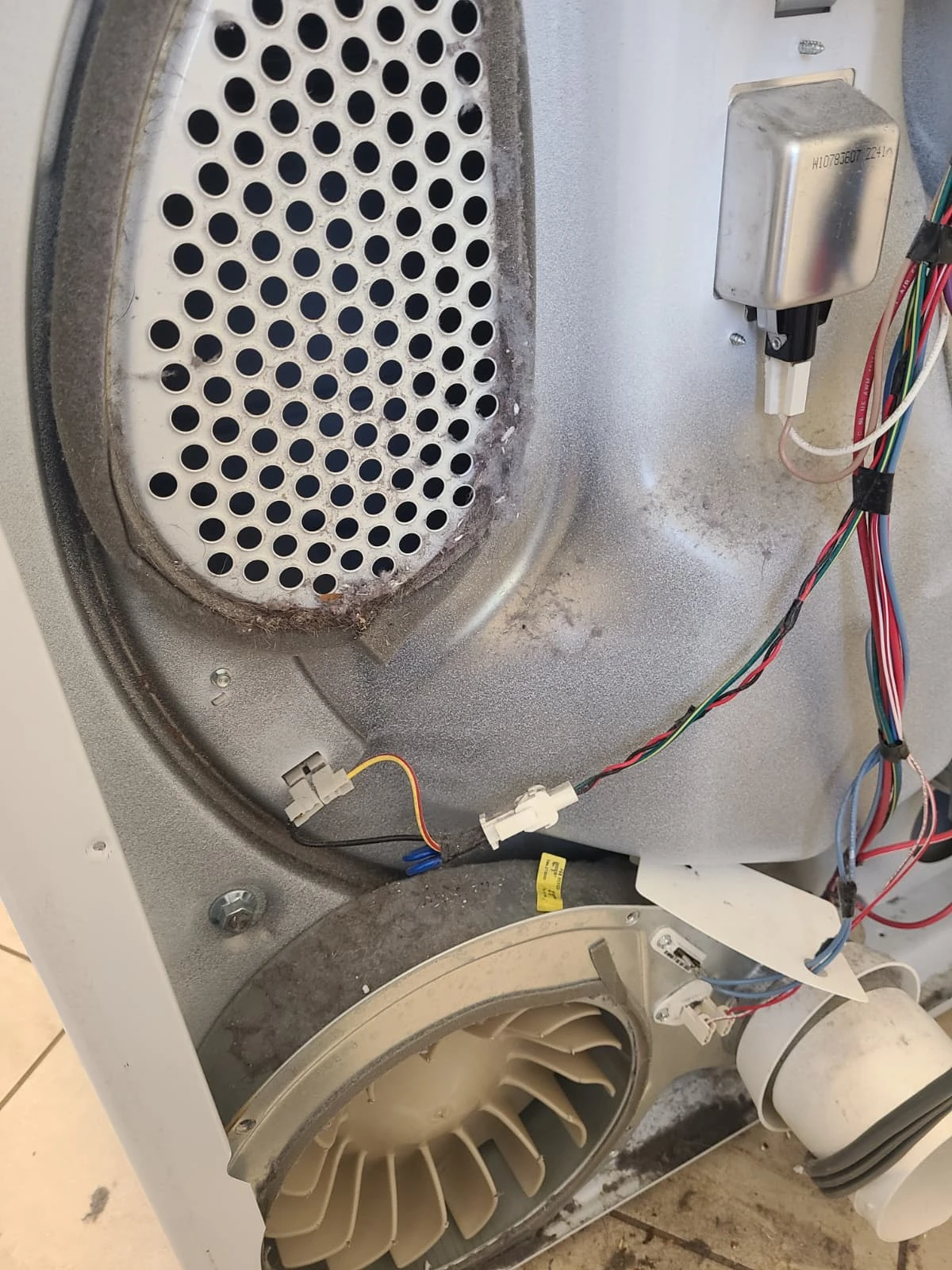

The second thermal-protection component replaced during the visit was the thermal fuse on the blower housing. The white, elongated fuse can be seen near the blower opening in the service photograph.
Both thermal-protection components were addressed during this visit. A similar symptom on another dryer still needs its own diagnosis: the model number and a description of what happens when a cycle starts are more useful than assuming a particular fuse must be the problem.
Two Drum Rollers and an Idler Pulley

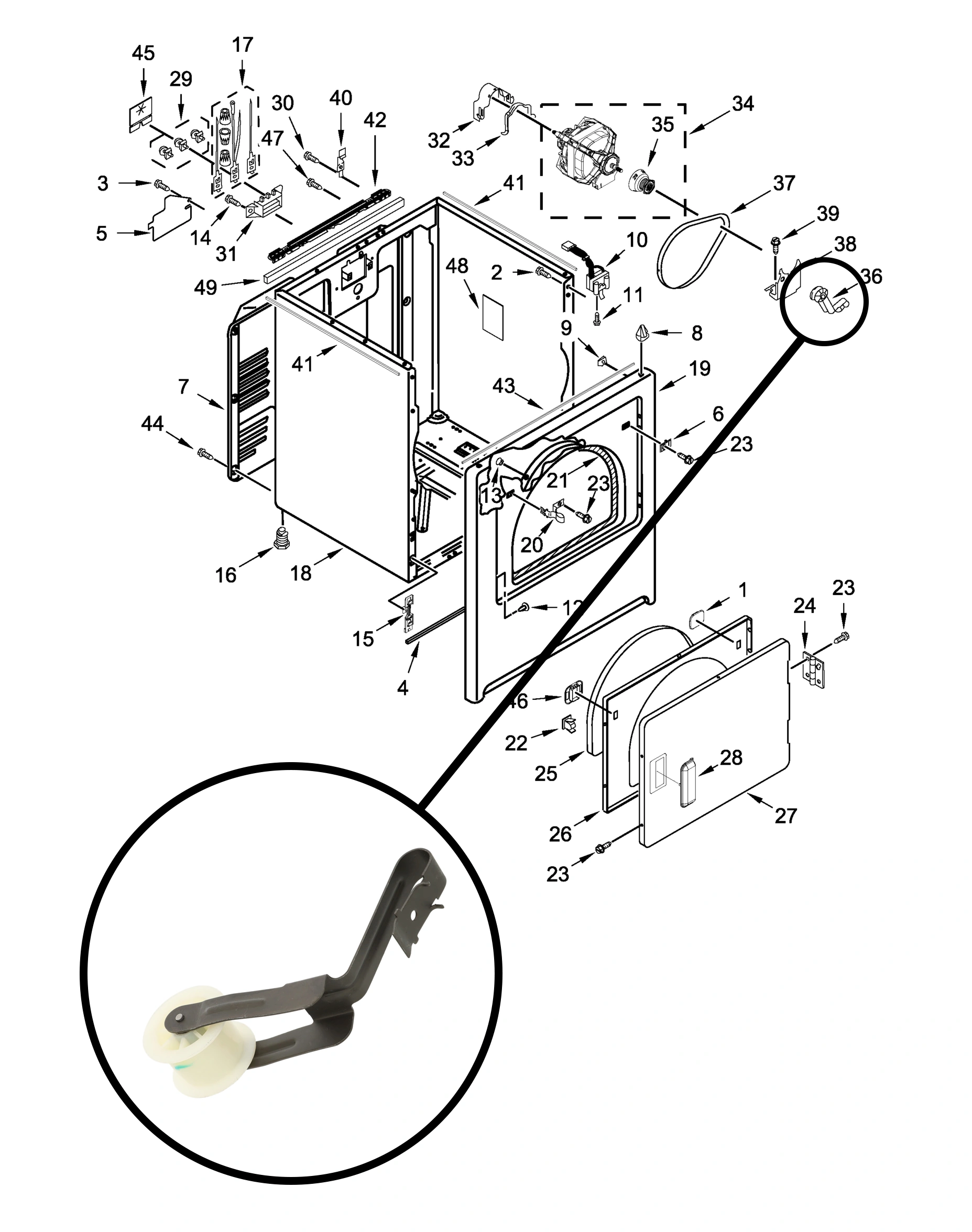

Inspection also identified mechanical components that needed attention. We replaced two drum support rollers and one idler pulley assembly. The rollers support the drum; the separate idler maintains tension on the drive belt.

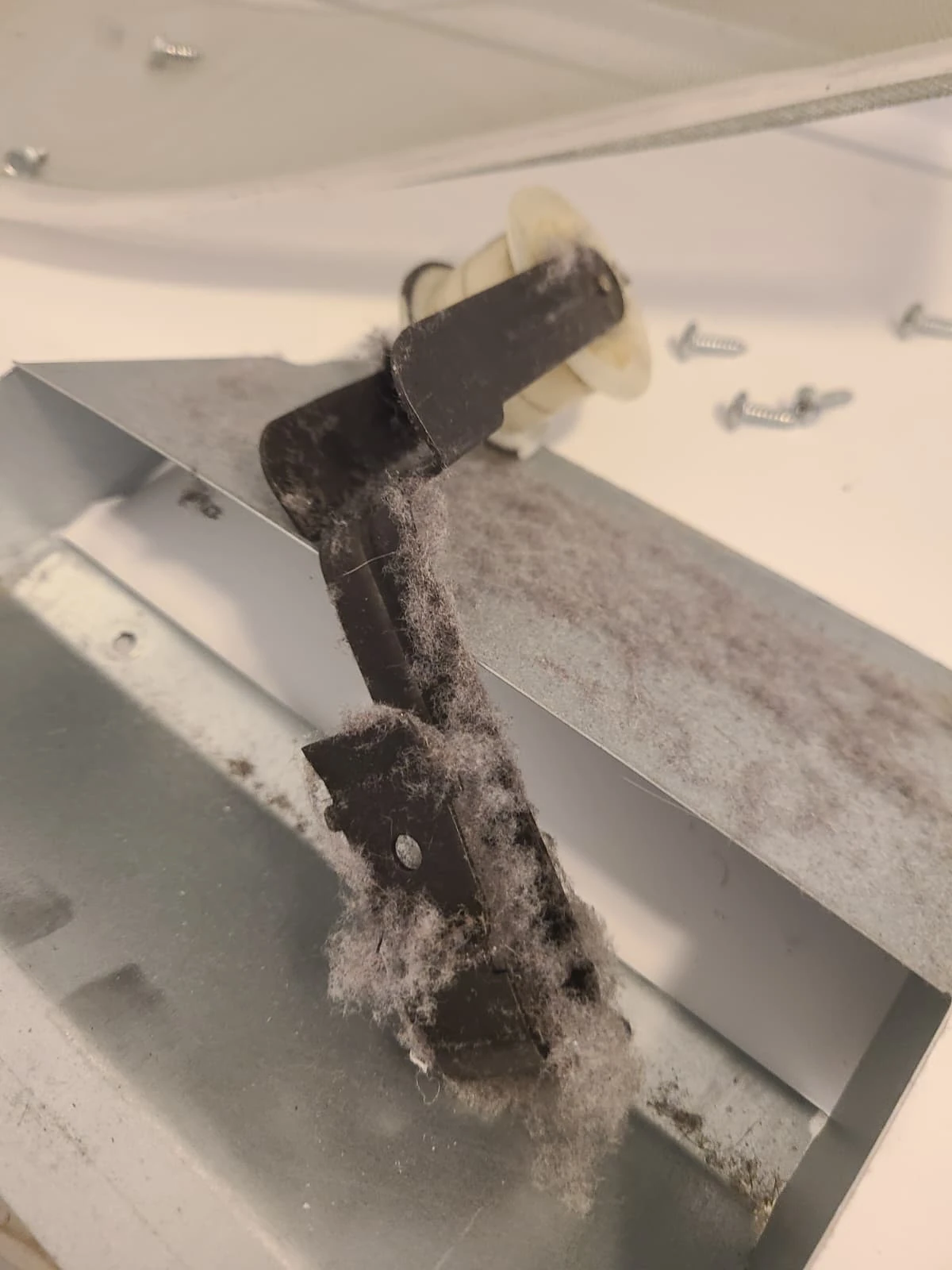

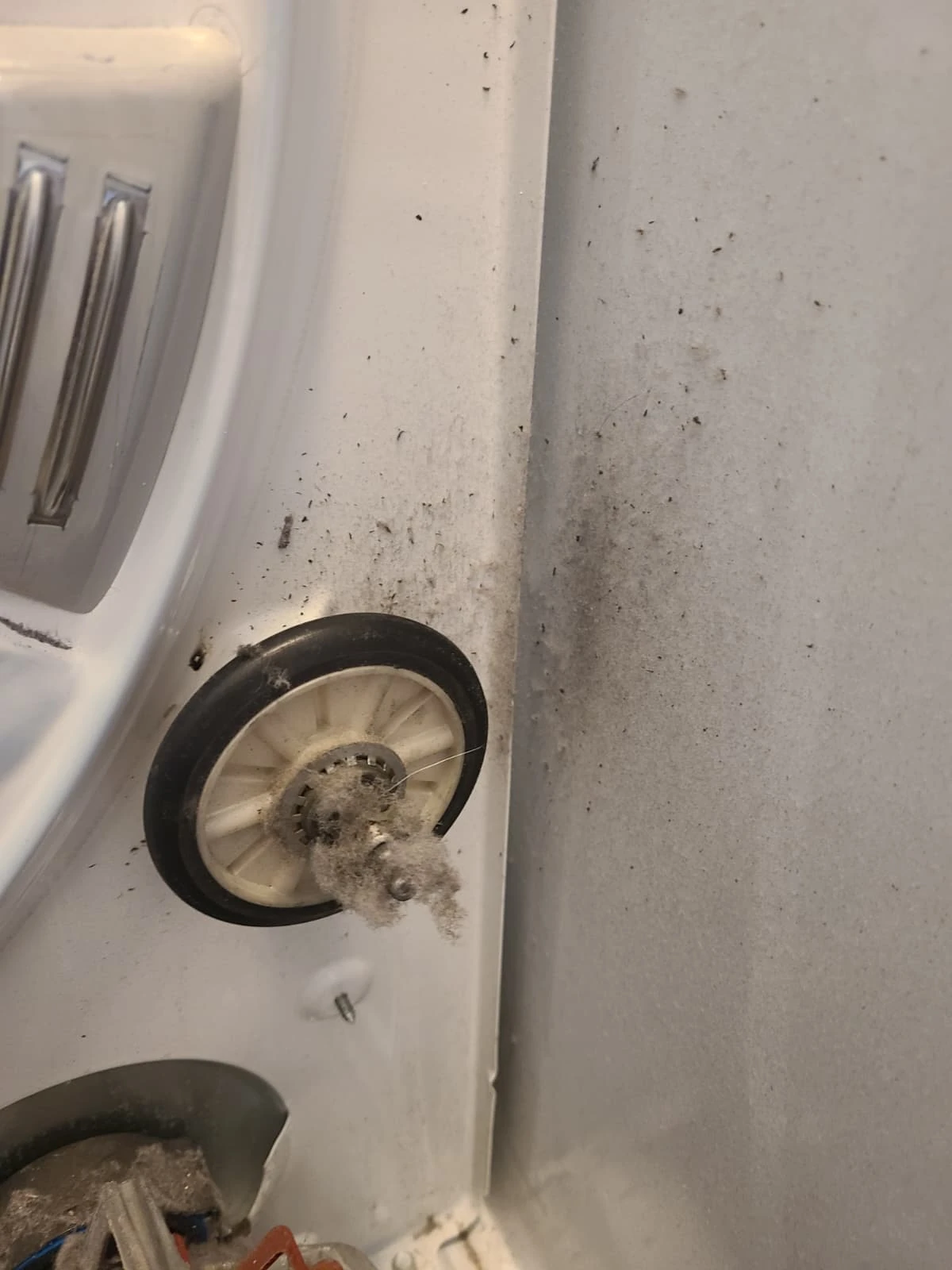

The before-service photographs show lint around an original roller shaft and on the removed idler assembly. These findings were handled while the dryer was already open. They were additional repair needs, not presented as the cause of the loss of heat.
Replacement Drive Components Installed

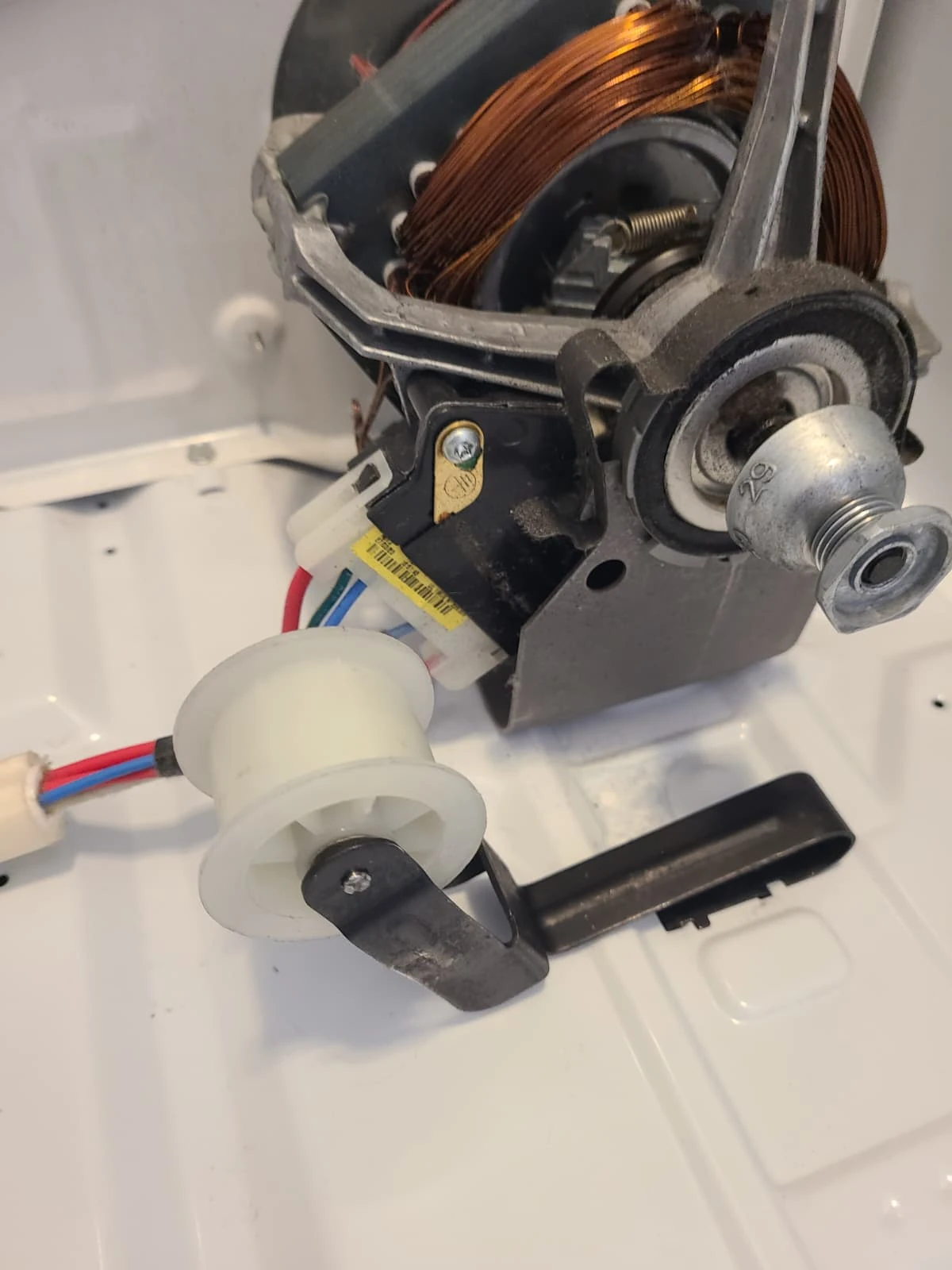

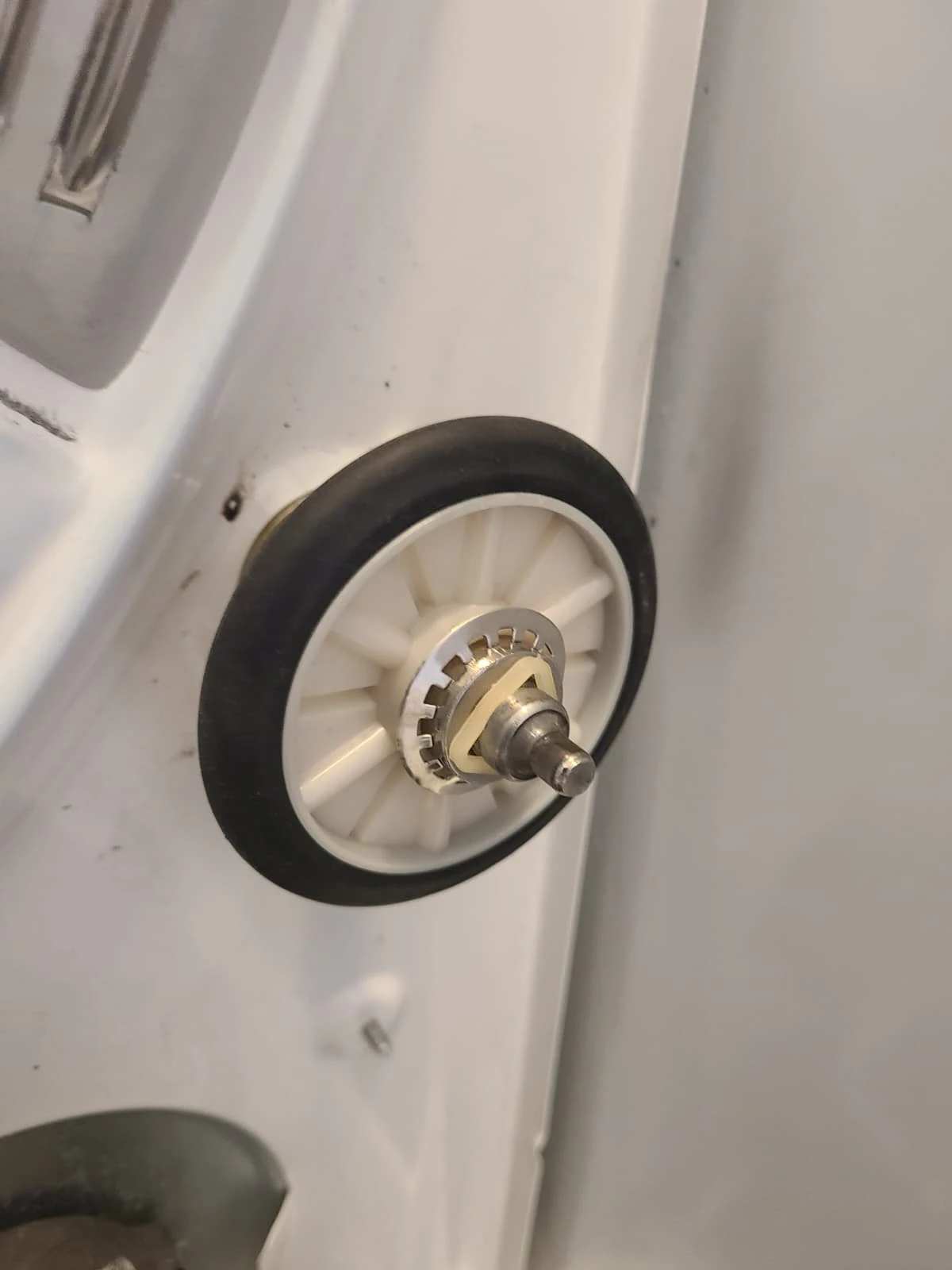

The new support rollers and idler were installed before the drum was returned to the cabinet. The close-up photographs show a replacement roller and the new belt-tensioning pulley beside the motor.
There are two drum rollers in the completed repair, plus the separate idler pulley. Keeping those names distinct helps when requesting service for a noisy dryer, a drum that does not turn properly or a belt-tensioning concern. This visit began with a heating complaint but included those mechanical repairs as well.
Vacuum Cleaning the Cabinet and Drum

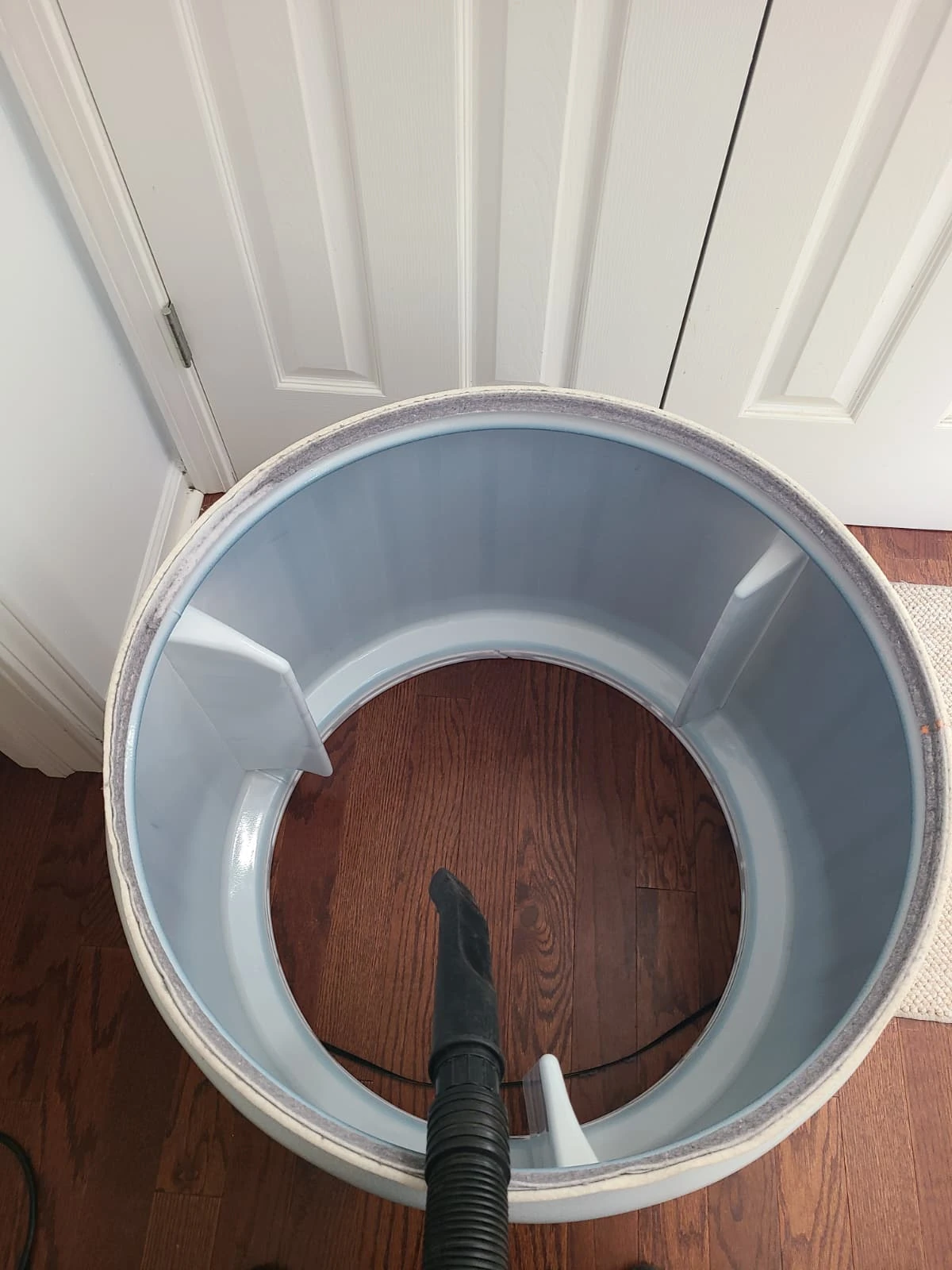

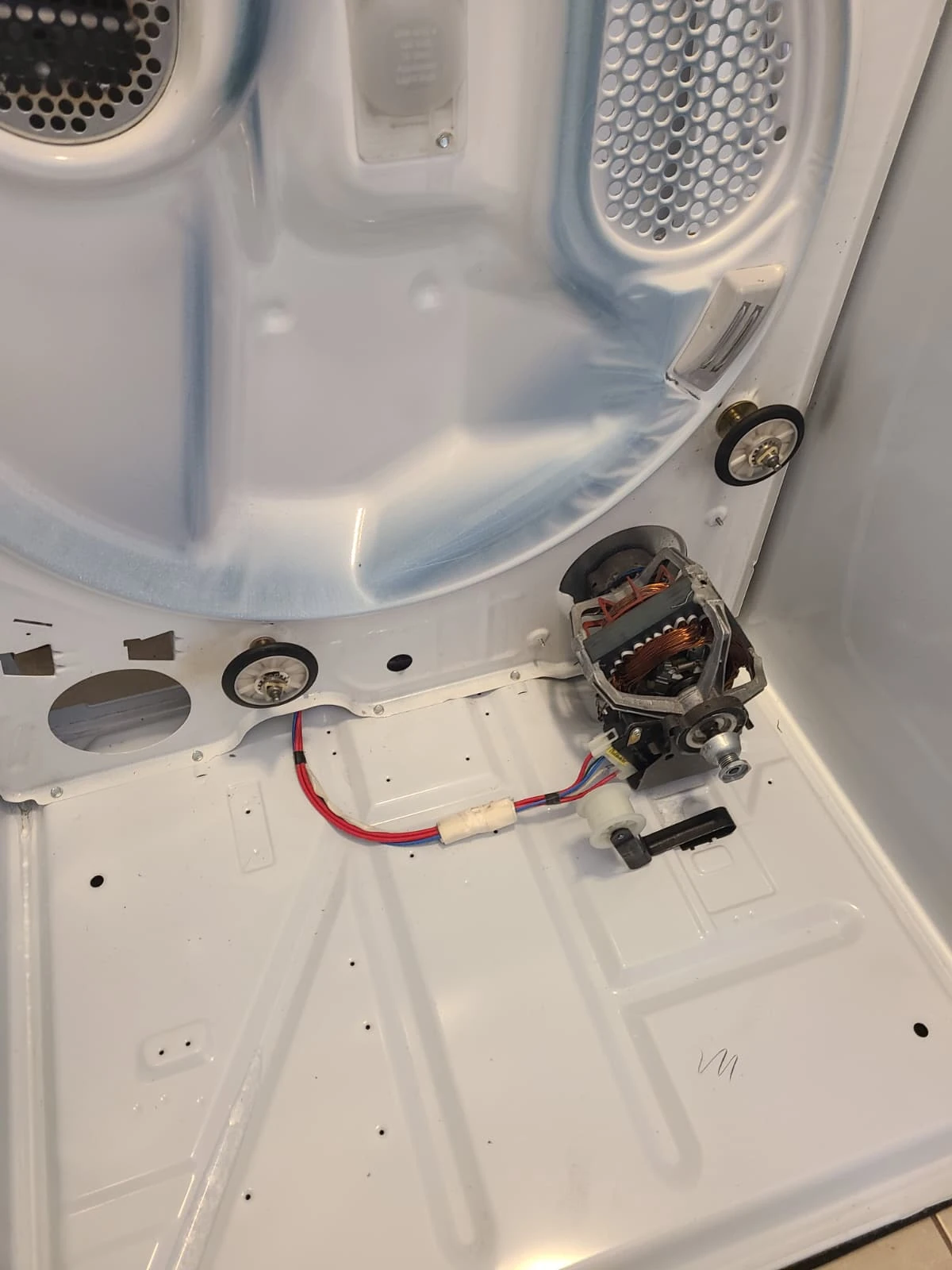

With the drum removed, the dryer interior was vacuumed and cleaned. The photographs show the cleaned cabinet and the drum being cleaned before reassembly.
Opening the machine provided access to lint that was not reachable through the normal lint-screen opening. The cleaning covered the appliance interior and drum. A home's exhaust duct is a separate part of the drying system and may require its own inspection or cleaning; this visit does not establish a house-duct blockage as the cause of the heating failure.
Reassembly and an Operating Test

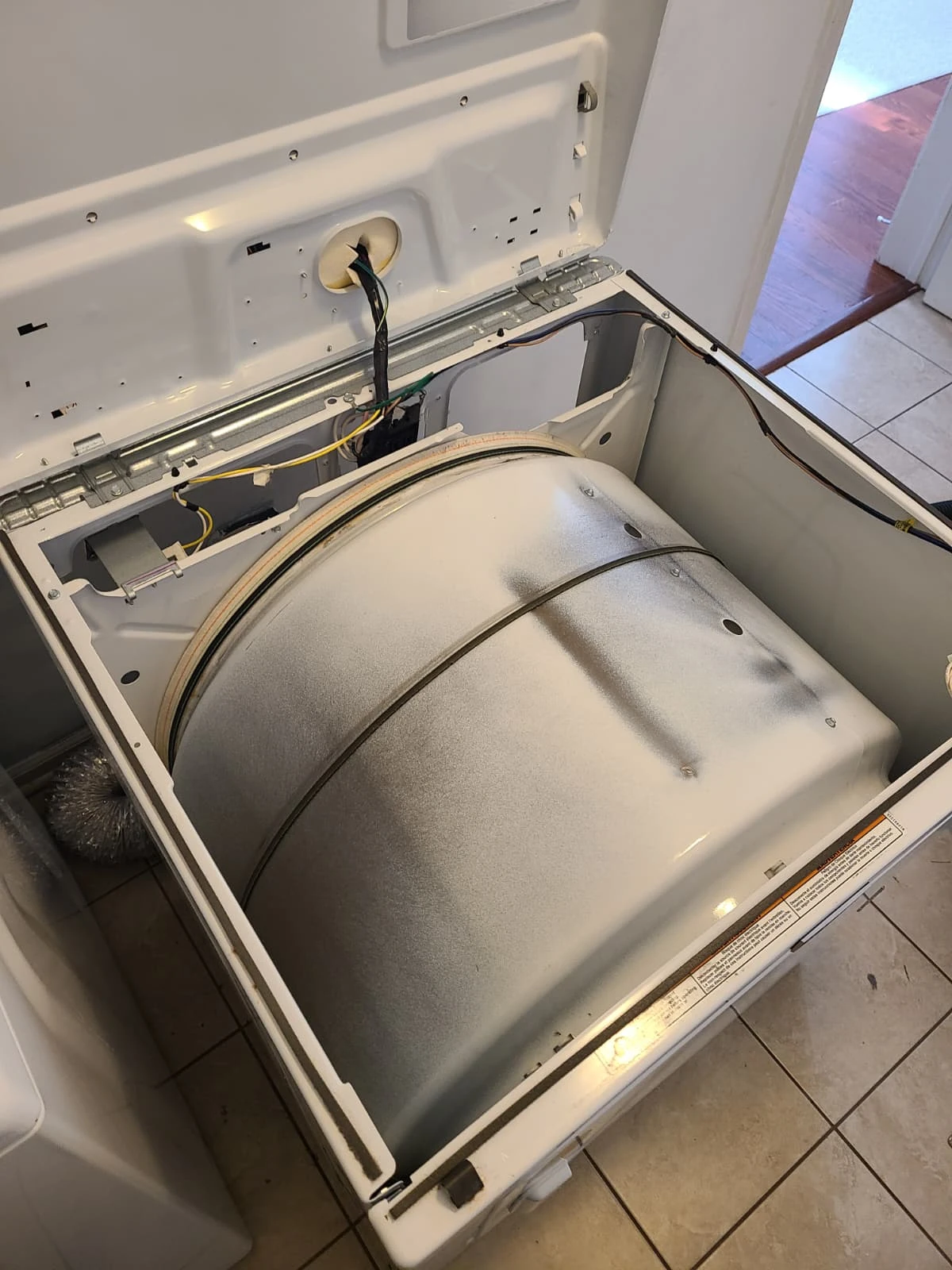

The drum and belt were returned to position, the removed assemblies were reinstalled and the dryer was fully reassembled. The photograph shows an intermediate stage, with the top still open, before the final check.
After reassembly, the technician started and tested the dryer. Heating and operation were restored. That final operating check completed the visit, confirming that the machine worked again after the thermal-protection and mechanical repairs.
A Working Dryer at the End of the Visit
The completed Noblesville service included the thermal fuse, heater thermal cut-off, two drum support rollers, one idler pulley, interior and drum cleaning, reassembly and testing.
For the homeowner, the important result was a dryer that heated again. For another owner with a similar symptom, the useful lesson is to have the machine diagnosed as a whole instead of assuming that a heating element or a particular fuse must be the answer.
Parts Replaced During This Repair
The repair included replacement of the white thermal fuse, the heater thermal cut-off, two drum support rollers and the belt idler pulley. These components serve different roles: the thermal protection components help protect the dryer from excessive heat, while the rollers support the drum and the idler pulley maintains belt tension.
Replacement components were selected for this Maytag MED5430MW0 dryer. After the replacements and internal cleaning, the dryer was reassembled and tested, and heating was restored.
Maytag Dryer Not Heating: Common Questions
Does no heat always mean the heating element is bad?
No. This service involved replacement of thermal-protection components. A technician needs to identify the actual fault before recommending a heating element or other parts.
Are the thermal fuse and thermal cut-off the same part?
No. This dryer has separate components on the blower housing and heater housing. Both were replaced during this service visit.
Did the drum rollers cause the no-heat problem?
The roller and idler replacements addressed additional mechanical issues found during inspection. They are not identified as the cause of the heating failure.
How many rollers were replaced?
Two drum support rollers were replaced, together with one separate idler pulley assembly that tensions the belt.
What information should I provide when requesting repair?
Mention the appliance model, Maytag MED5430MW0, and describe the symptom, such as no heat. You do not need to identify the failed component yourself; diagnosis determines which parts need attention.
