Service focus
This Carmel service visit involved a KitchenAid KSDG950ESS1 30-inch dual-fuel downdraft range with an oven that would not heat in Bake mode. Diagnosis identified a damaged bake heating element. The bake element was replaced, the range was reassembled, and the oven was checked in preheat and with a thermometer after the repair.
Why the Bake mode stopped heating
The service record identifies visible damage on the bake heating element. On this dual-fuel range, the surface burners and electric oven heating system are separate. A damaged bake element can keep the oven from heating properly in Bake mode, but controls, sensors and wiring should still be evaluated before parts are approved. This repair story documents the damaged element and replacement work without adding unrecorded resistance readings or temperature values.
Work documented

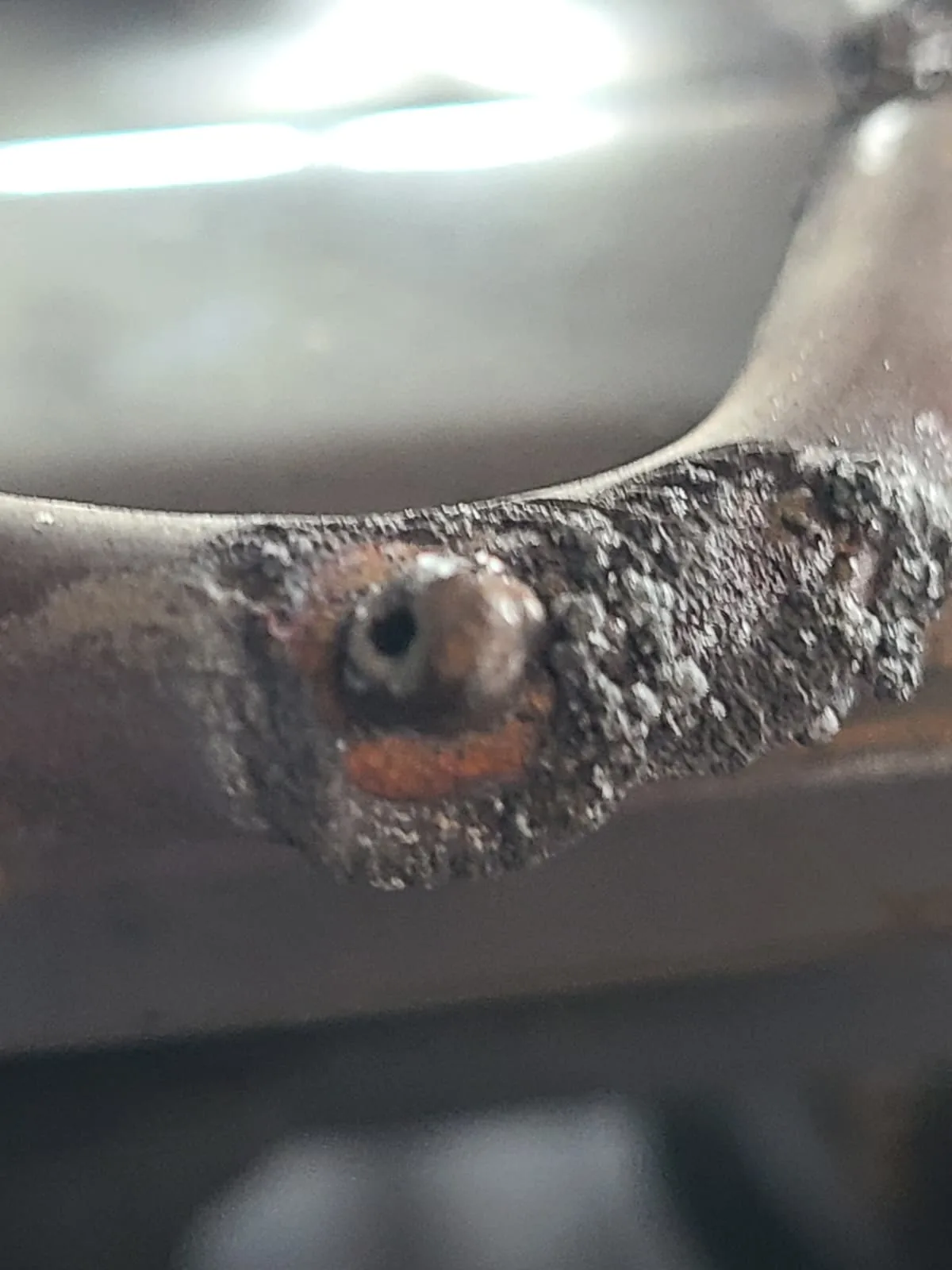

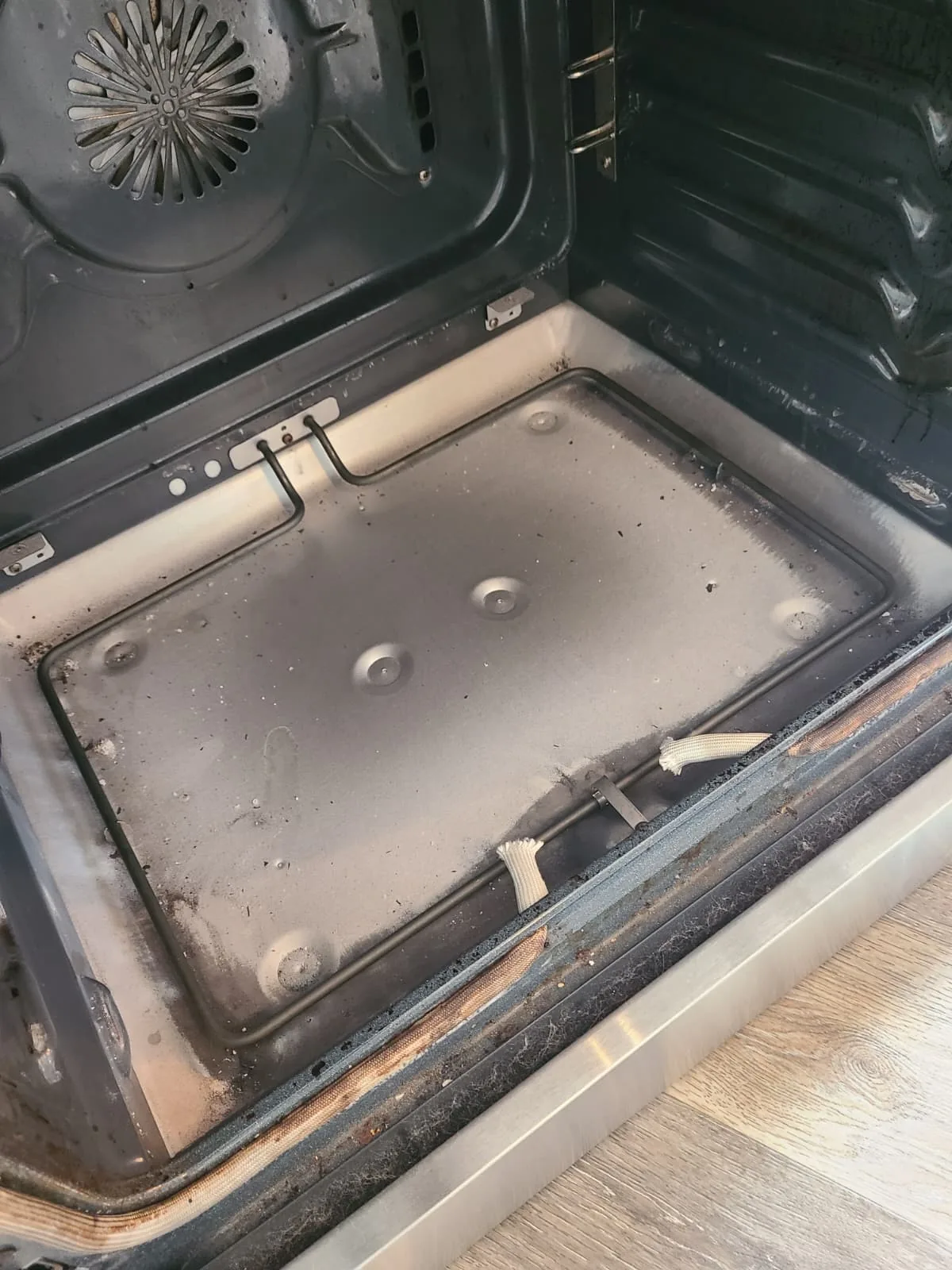

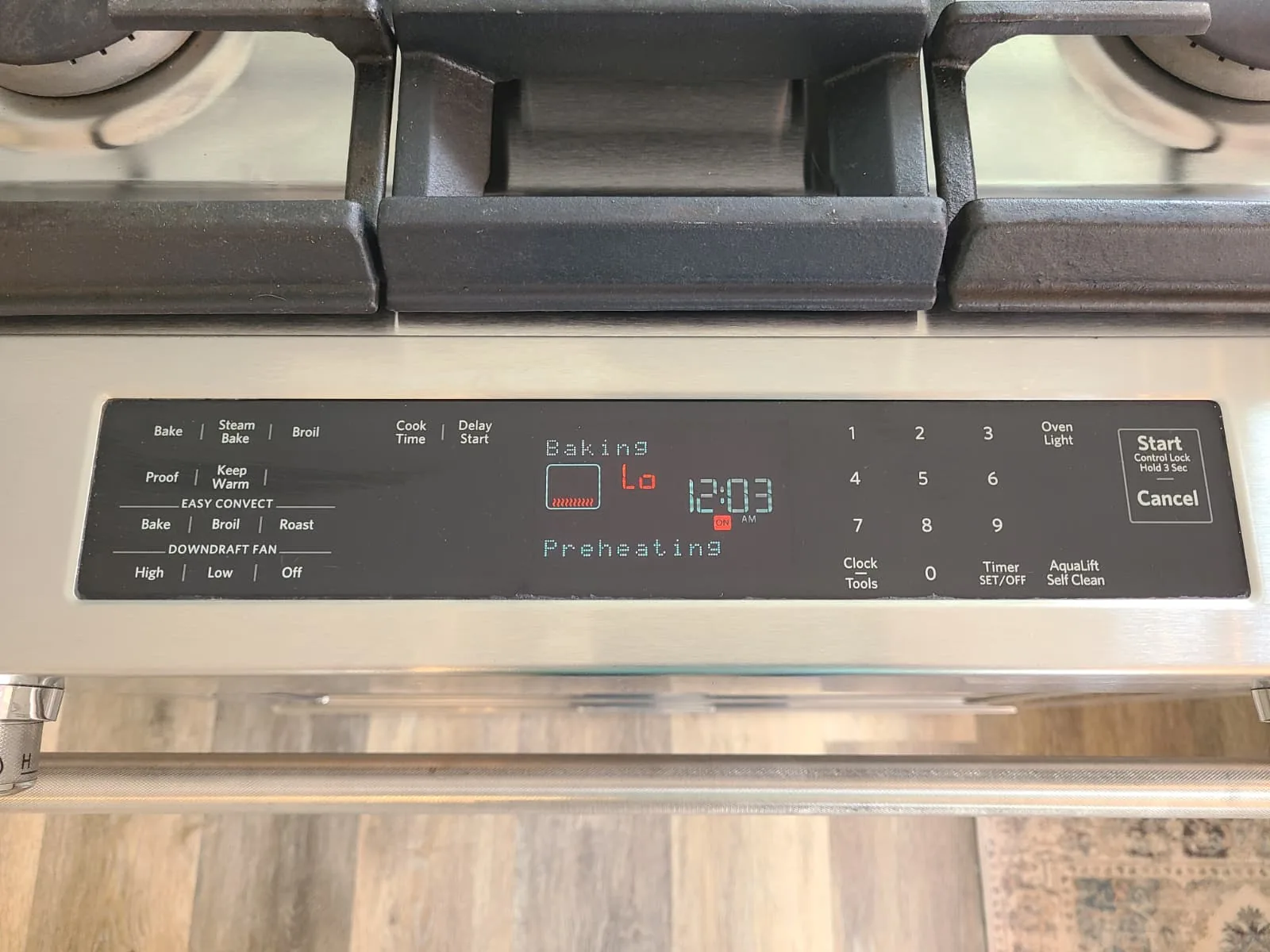

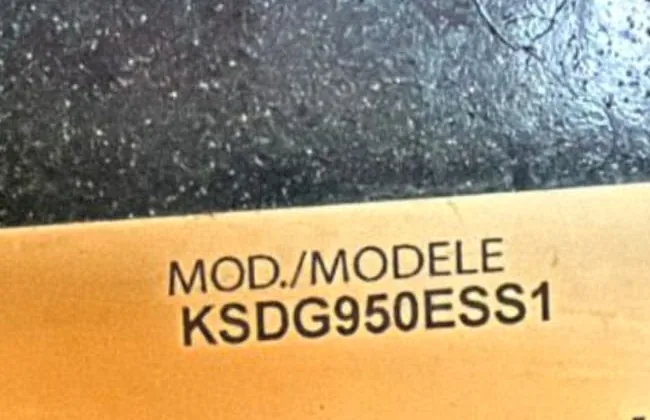

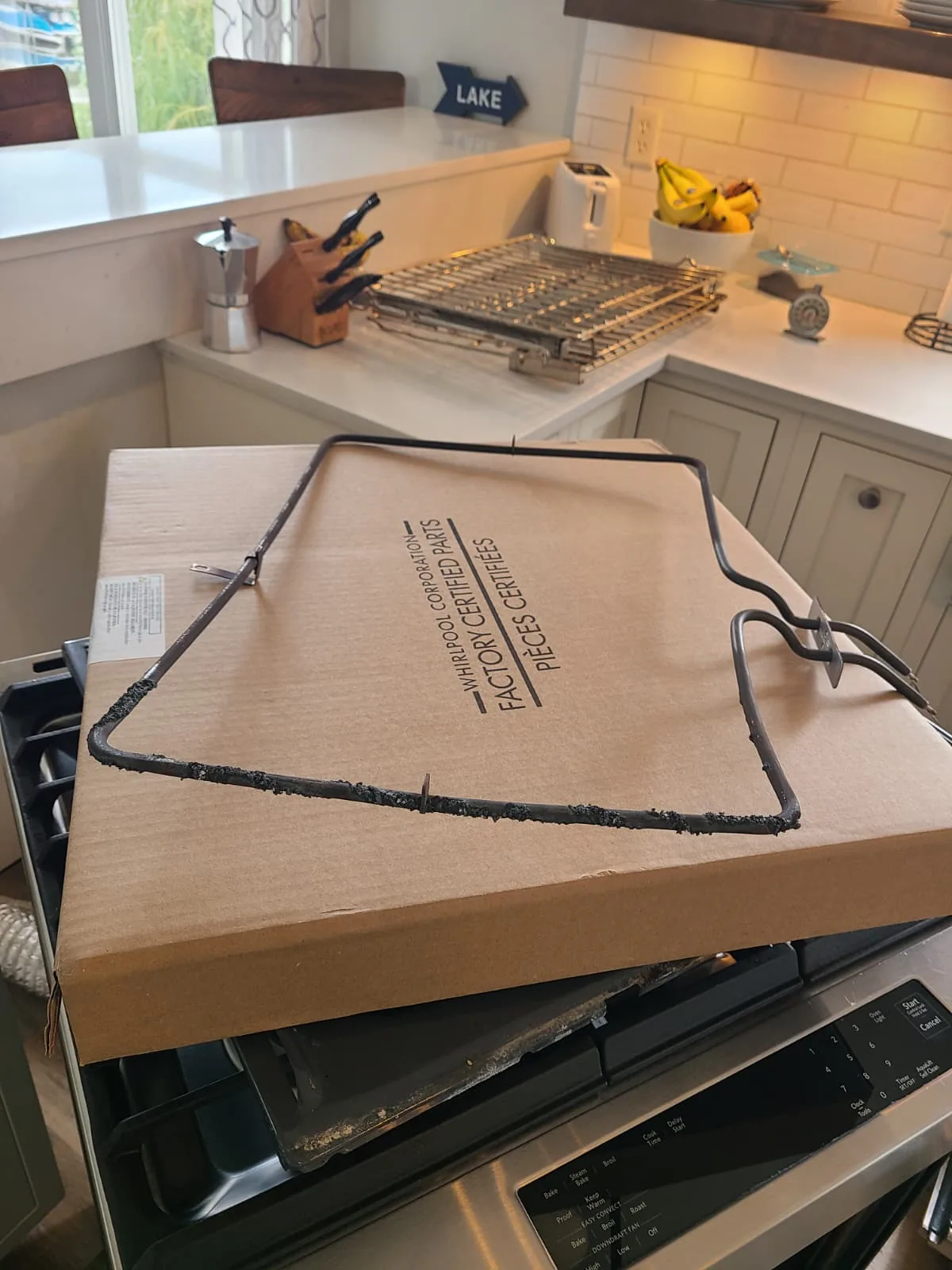

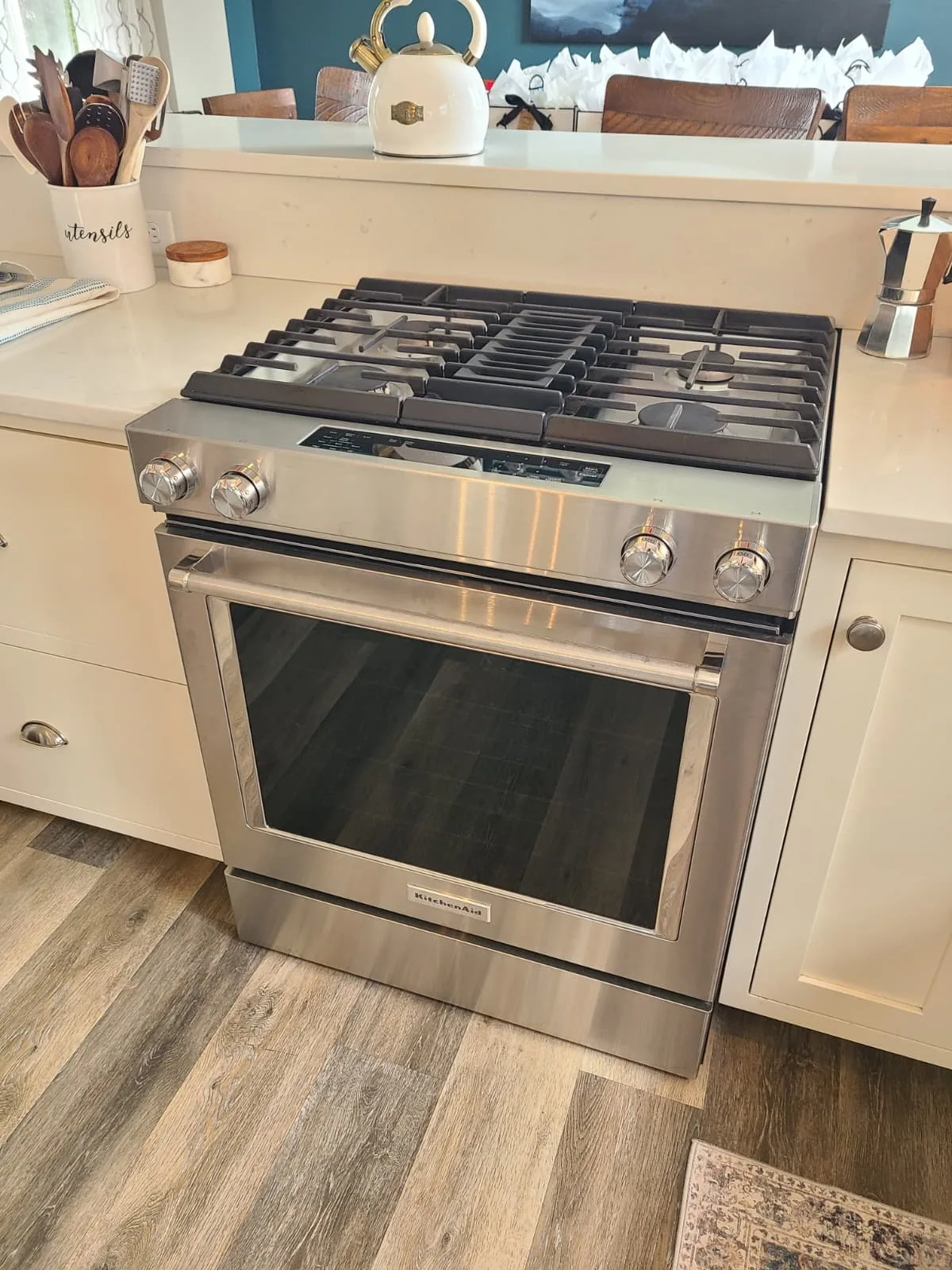

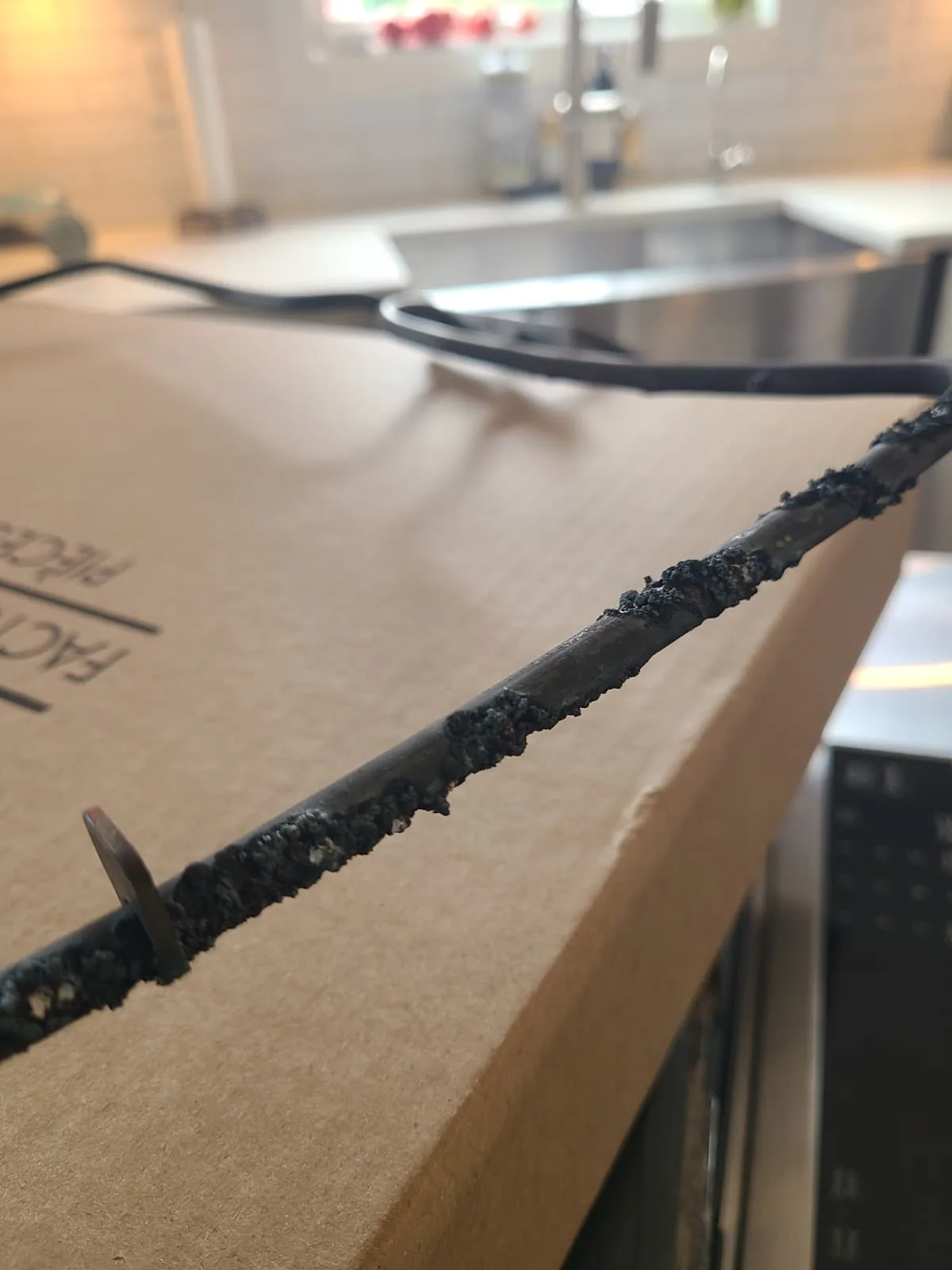

The photo sequence documents the installed KitchenAid range, visible damage on the old bake element, the removed element, access inside the oven cavity, the preheating display, and a cropped model label confirming KSDG950ESS1. The selected photographs do not claim a control board, sensor, igniter, surface burner or wiring replacement.
Understanding this repair
On a dual-fuel range, gas surface burners and the electric oven heating system are separate service areas. When Bake does not heat, useful details include the selected oven mode, whether Broil or Convection behaves differently, whether the display shows an error, and whether the oven starts preheating. A model-specific diagnosis should come before parts are selected because heating-element symptoms can overlap with control, sensor or connection issues.
For a similar concern, see our stove repair service. Each appliance is evaluated before parts or repair work are recommended.
Explore our KitchenAid appliance repair services and Carmel service coverage. Alex Appliance Repair is an independent appliance repair provider operated by Aksenov LLC.
Photos from this repair
